How do I connect Trackit and Tracker?

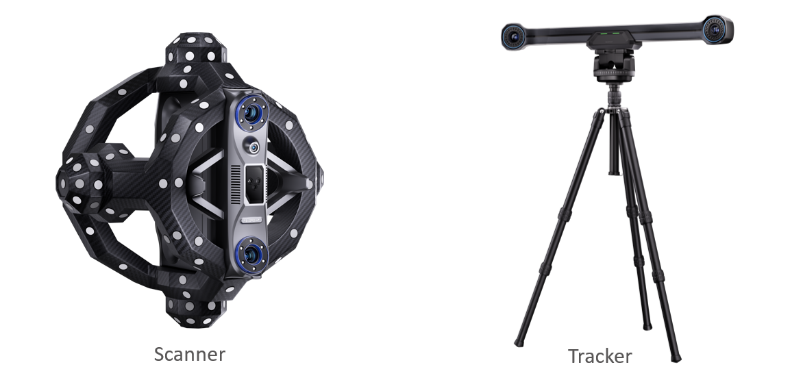

Tutorial Video: Revopoint Trackit 3D Scanner: Setup and Connection

1. Product Profile

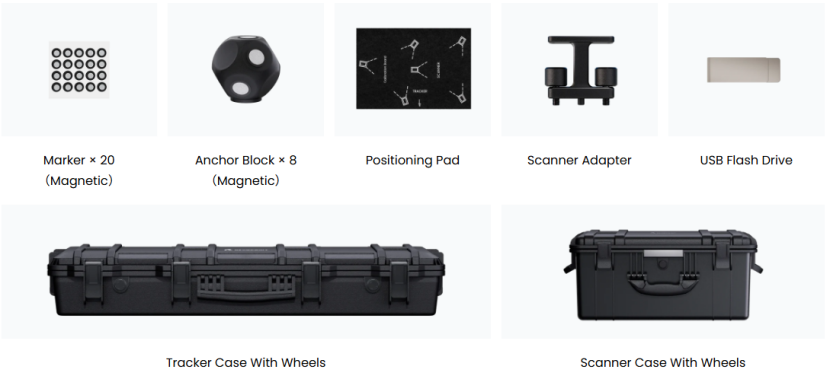

2. What’s in the box

3. System Requirements

 Minimum PC Requirements:

System Version: Windows 10/11 (64-bit)

RAM: 32GB

CPU: Intel i7 13^th Gen or better / AMD Ryzen 7 above the 7000 series

GPU: NVIDIA GeForce RTX 3050 (8GB)

Recommended PC Requirements:

System Version: Windows 10/11 (64-bit)

RAM: 64GB

CPU: Intel i9 12th Gen or better

GPU: NVIDIA RTX 4060 (8GB) or better

4. Installation and Connection Steps

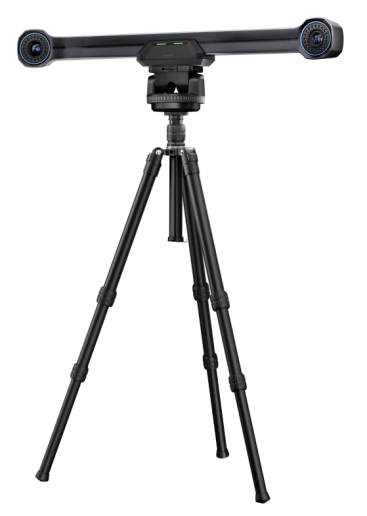

(1) Install Tracker

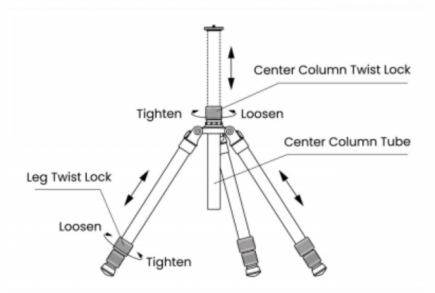

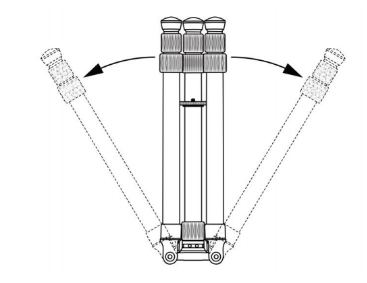

Step l: Pull the legs outwards to unfold the tripod. Continue pulling the legs down until they lock into place. Adjust the center column and the legs to your required height as shown in the diagram.

(A click sound indicates it has locked into one of the three preset positions)

Step 2: Align the Tracker Gimbal's screw hole with the tripod screw, then rotate the gimbal until securely attached to the tripod.

Slide the Quick Release Plate⓵ on the bottom of the Tracker into the groove of the Quick Release Clamp⓶ and ensure the white lines on the front are aligned, tighten the locking⓷ knob clockwise.

Note: If the Quick Release Clamp is loose, ④tighten it by sliding the gimbal's latch in the direction shown.

(2) Connect Tracker

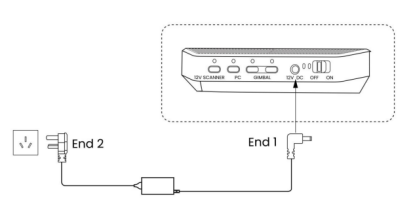

Step 1: Connect the Power Adapter's end 1 to Tracker's “12V DC” port, and end 2 to a power supply.

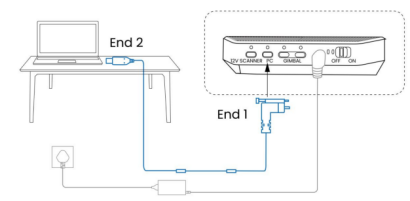

Step 2: Connect the PC Cable's end 1 to Tracker's “PC” port and tighten the screws. Insert the end 2 into a USB Type-C port on your PC.

Attach the cable to the Scanner Tripod using cable ties to keep it stable.

(3) Connect Scanner

Connect the Scanner Cable's end 1 to Tracker's "12 V SCANNER" port and tighten the screws. Connect the end 2 to the USB Type-C port on the Scanner and tighten the screws.

(4) Power Trackit

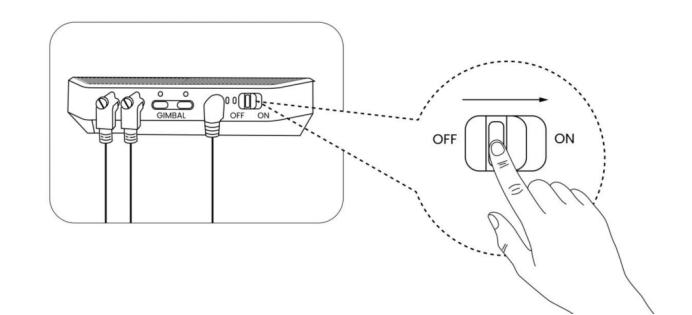

Turn on the power switch on the Tracker's back. When the right LED turns green and the software interface shows “Scanner connected,” it's ready.
