How do I place markers?

• Placing Markers When Using RANGE Series 1-2, MIRACO(Far Mode)
• Placing Markers When Using MINI Series 1-2, MIRACO(Near Mode)
• Placing Markers When Using POP Series 1-3, INSPIRE

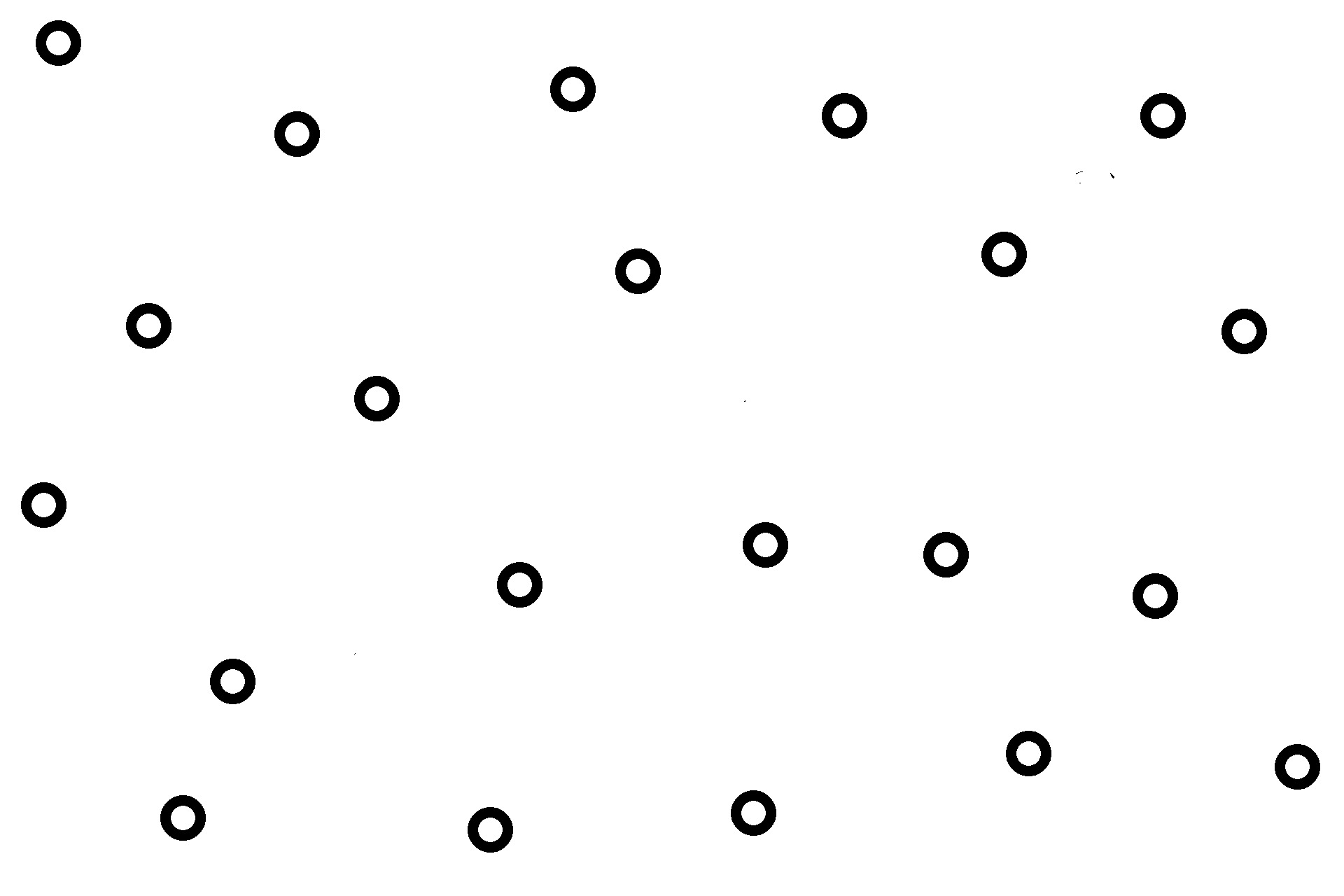

Placing Markers When Using RANGE Series 1-2, MIRACO(Far Mode)

Placing Markers When Using MINI Series 1-2, MIRACO(Near Mode)

1. For the best tracking experience, use 5 or more markers. Some objects may be successfully scanned using fewer markers but always have a minimum of 4 markers per frame.

Note: Single frame means the total area that a scanner can capture at a fixed distance. For example, a single frame at 150mm from an object has an area of about 120mm x 65mm.

2. It is recommended to place markers at a distance of 2~4 cm (The minimum distance is 2cm).

3. When sticking markers, don’t place them in geometric shapes or patterns.

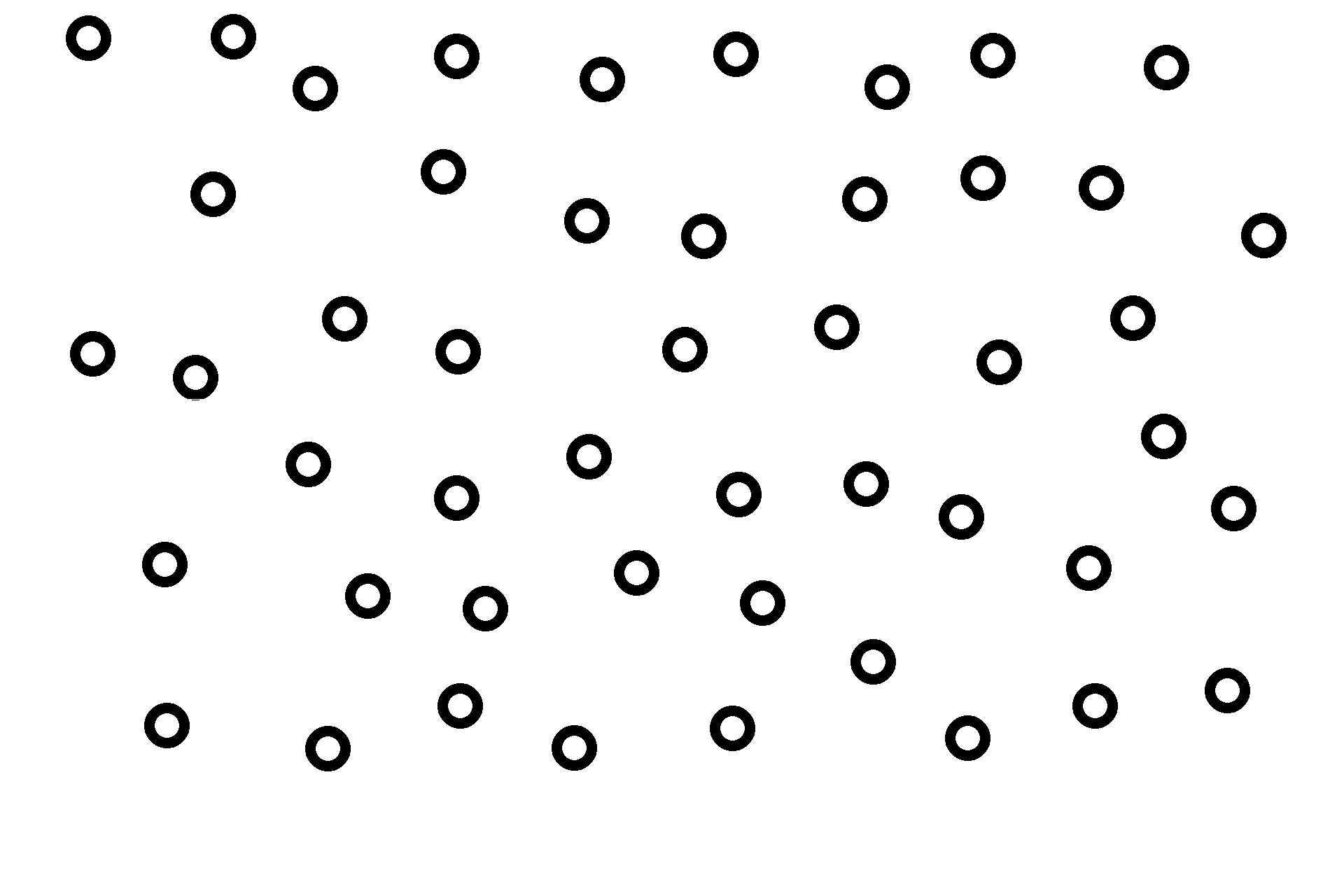

4. Take this pattern as a reference for placing markers.

Placing Markers When Using POP Series 1-3, INSPIRE

1. For the best tracking experience, use 5 or more markers. Some objects may be successfully scanned using fewer markers but always have a minimum of 4 markers per frame.

Note: Single frame means the total area that a scanner can capture at a fixed distance. For example, a single frame at 275mm from an object has an area of about 120mm x 115mm.

2. It is recommended to place markers at a distance of 2~4 cm (The minimum distance is 2cm).

3. When sticking markers, don’t place them in geometric shapes or patterns.

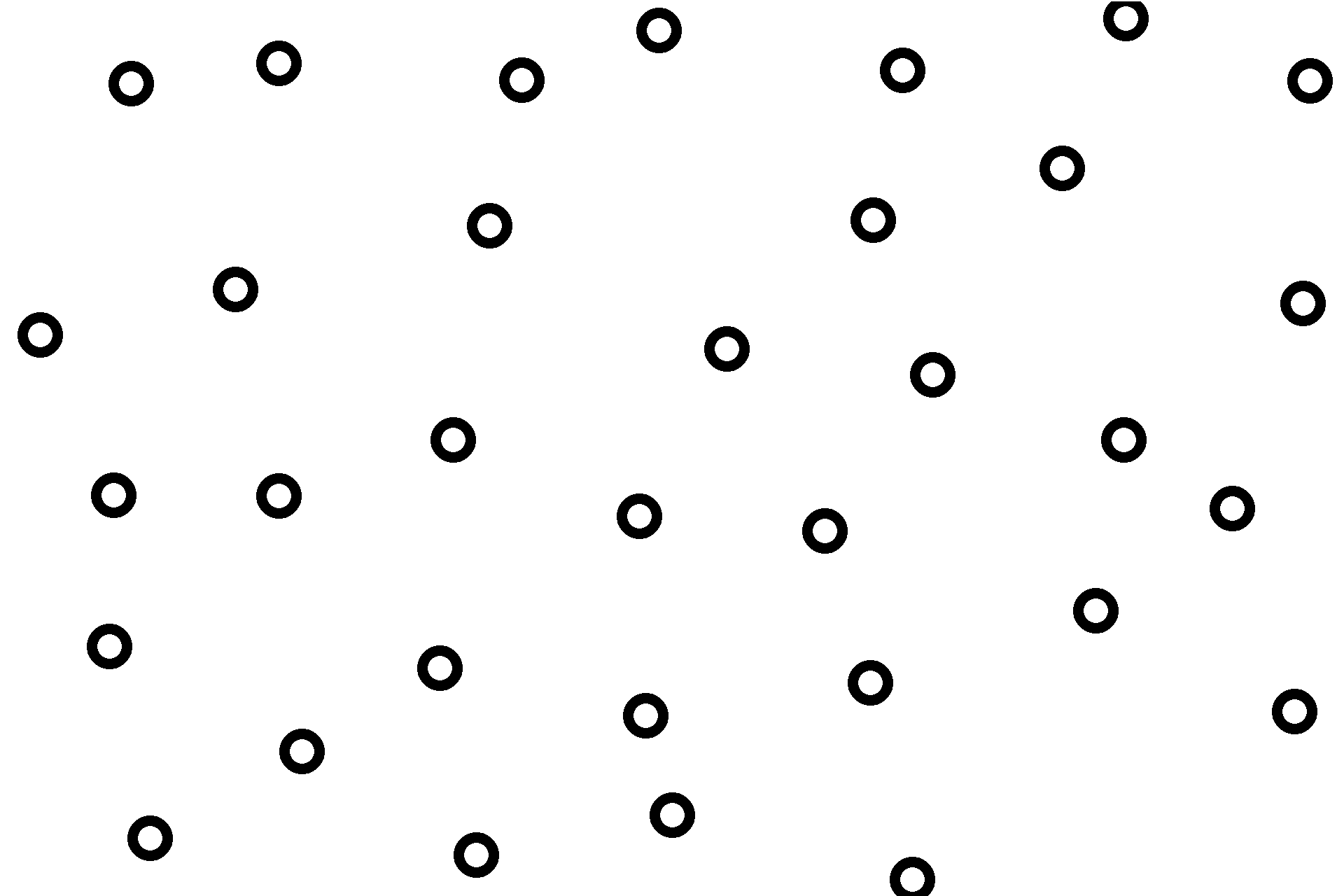

4. Take this pattern as a reference for placing markers.
