MIRACO Series: Tutorials of File Transfer and PC Mode

Please check the tutorials below:

1. Export Files to External Storage
2. File Transfer via USB cable
3. File Transfer via WiFi(to a PC or smartphone)
4. Use MIRACO in PC Mode

1. Export Files to External Storage

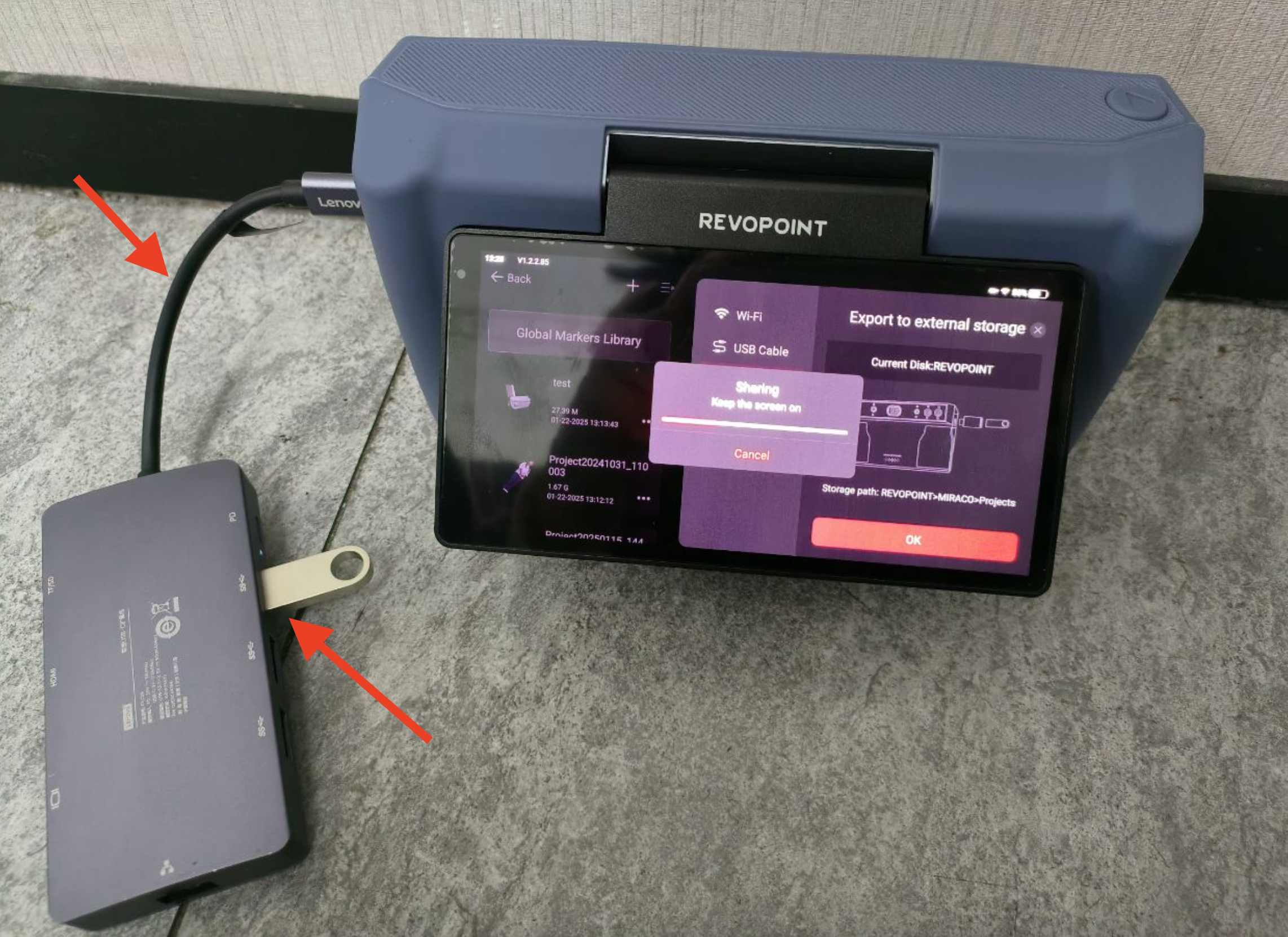

Step 1, plug your flash drive into the MIRACO. If it's a USB port, use a Type-C adapter.

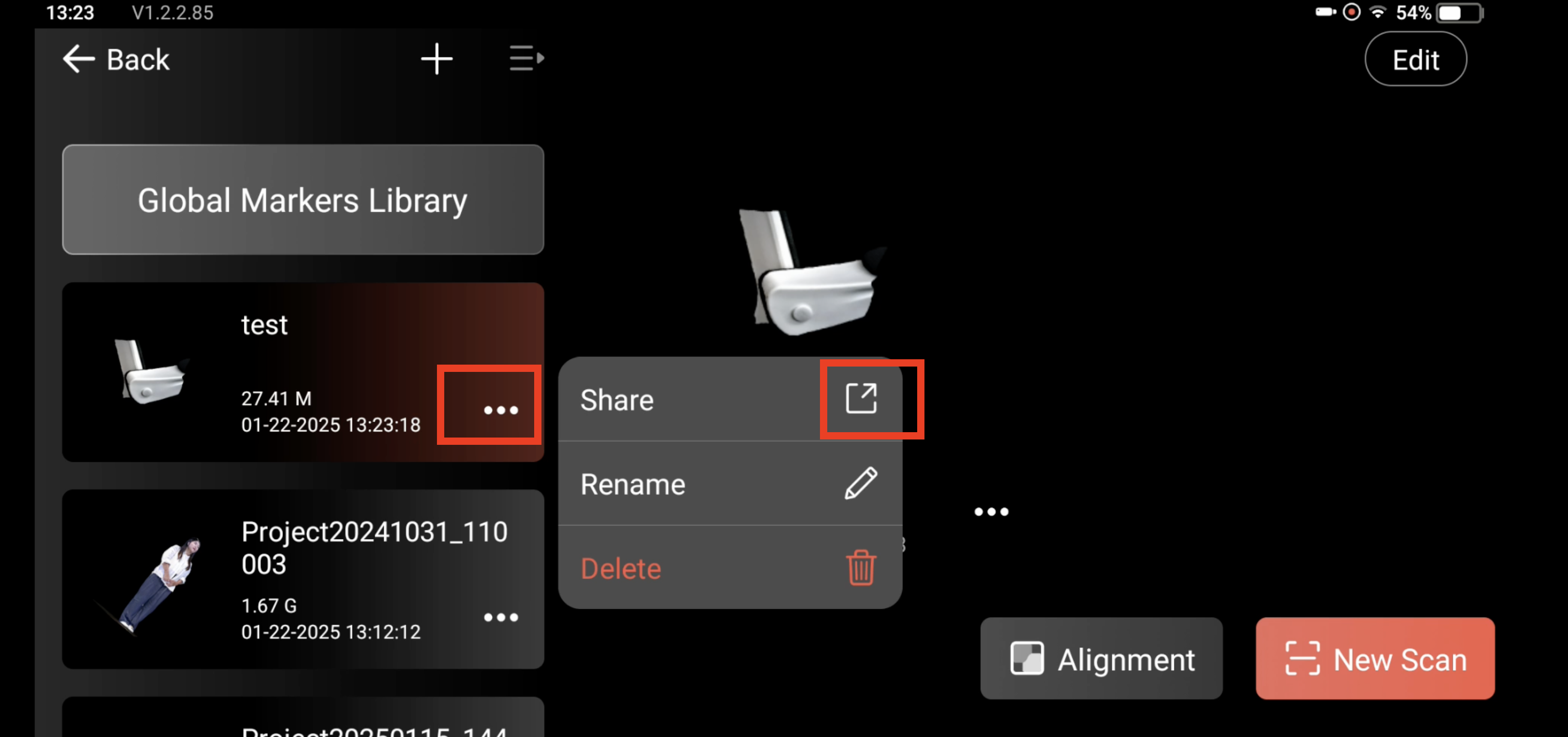

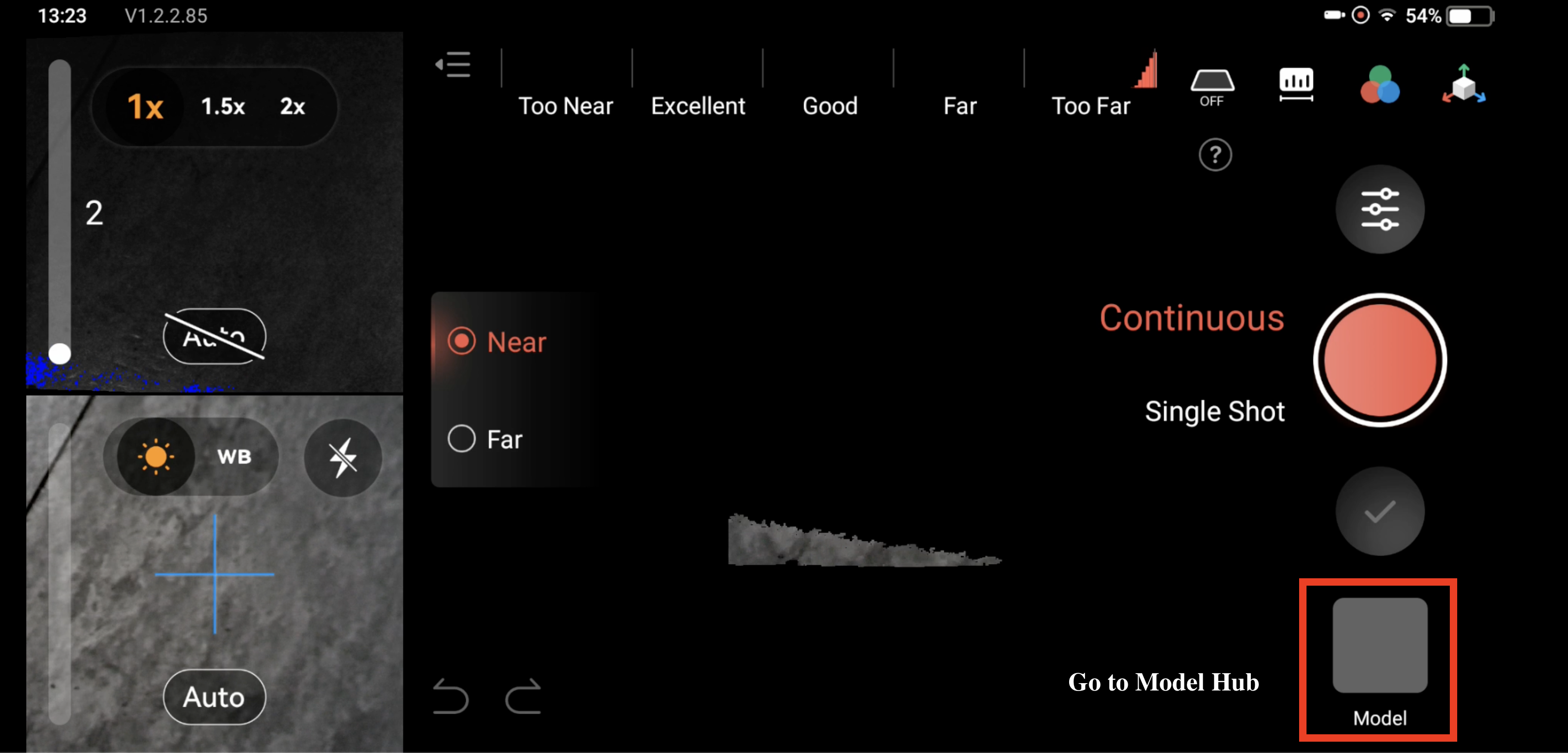

Step 2, go to "Model Hub", select the desired "Project", click the "Share" icon, then choose "Your Flashdrive" and click "OK".

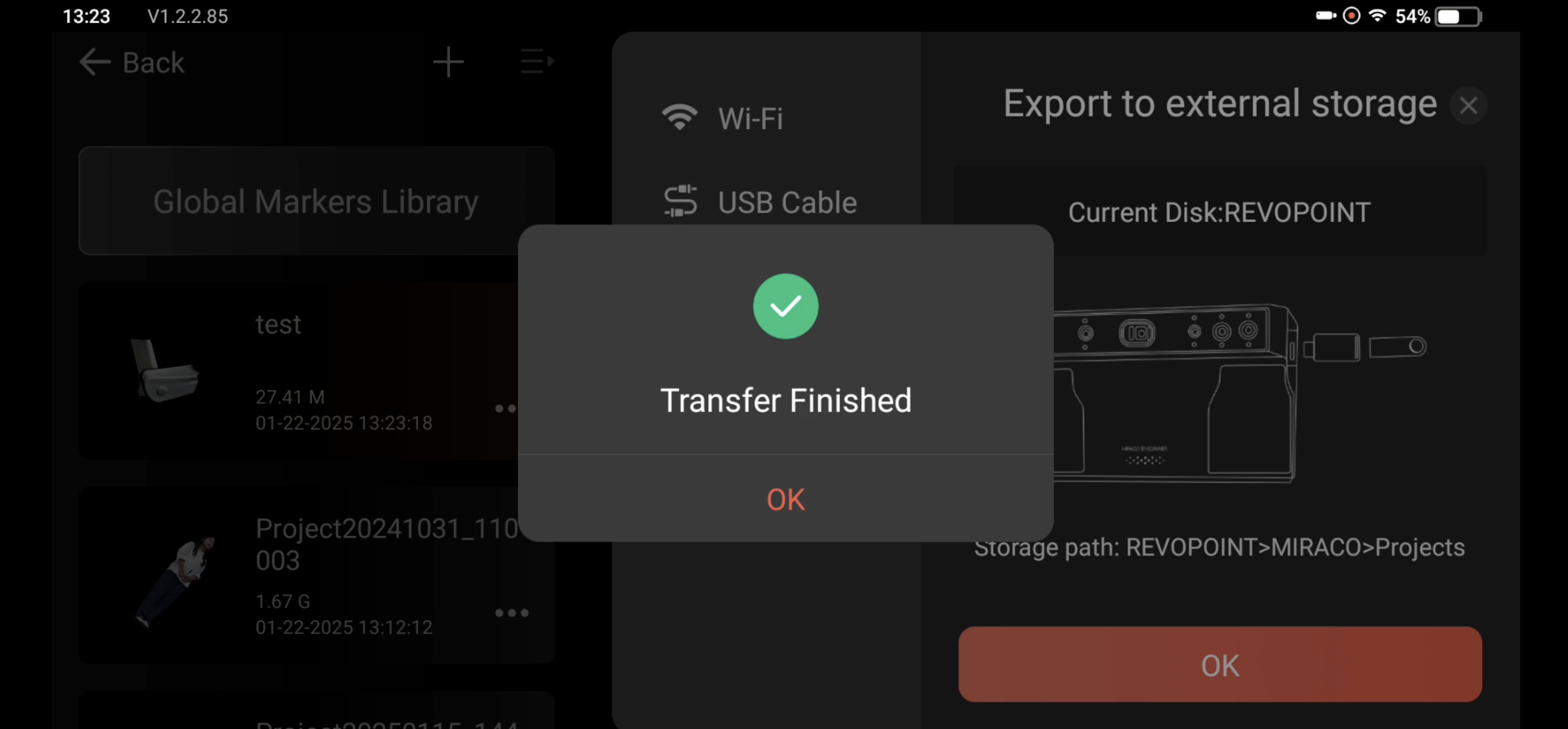

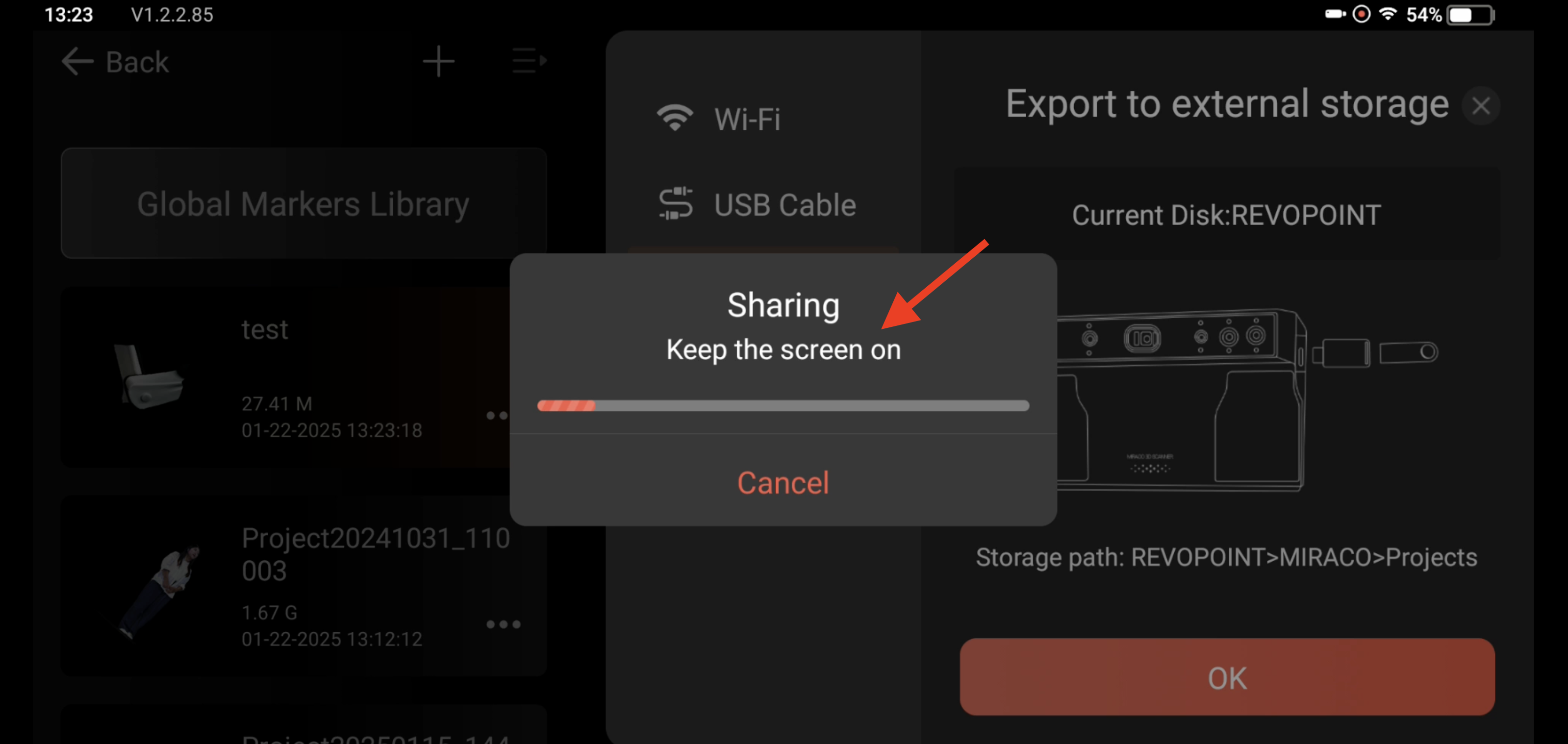

Step 3, wait for the sharing process to complete. (Keep the screen on)

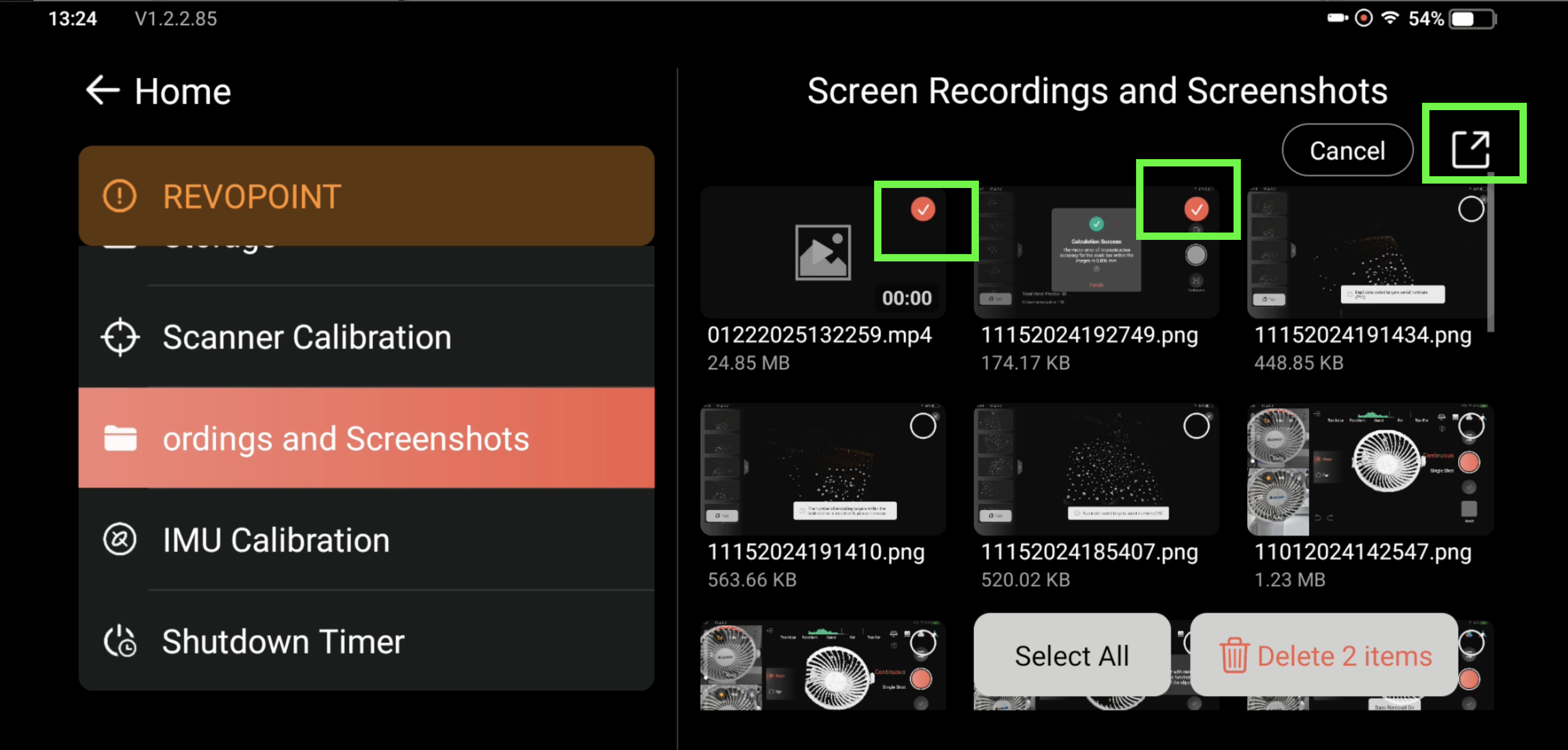

You can also export the screenshots or recorded videos to your flash drive.

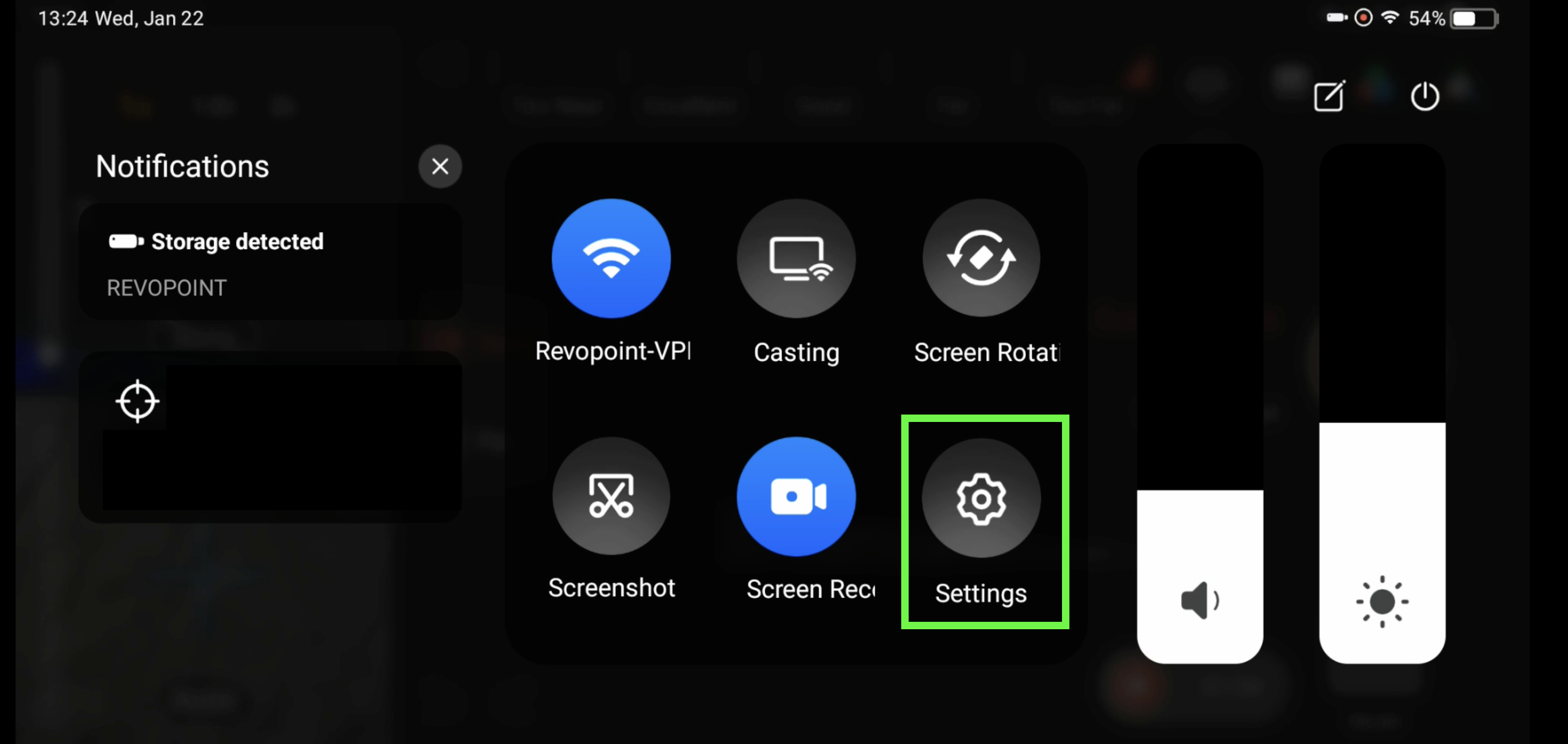

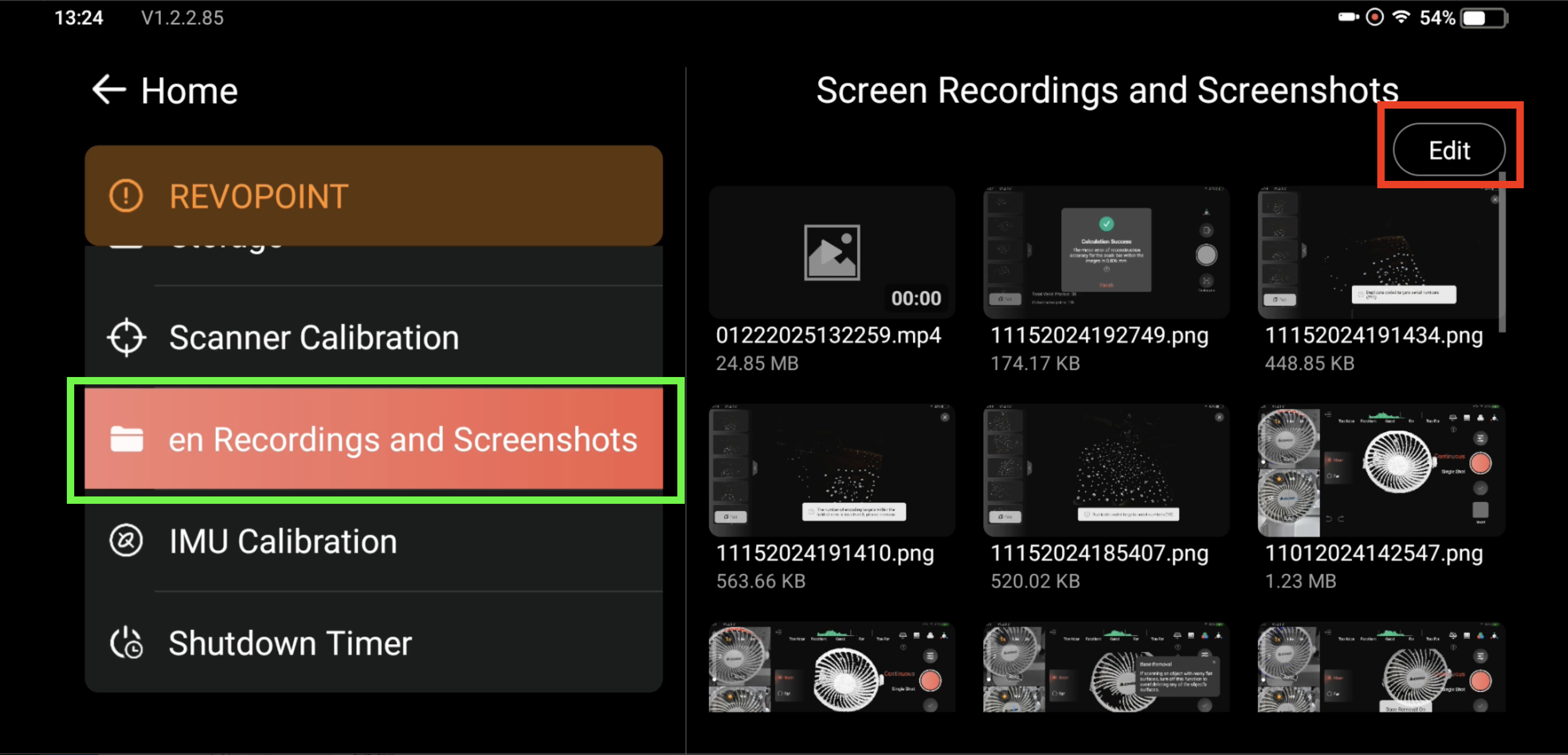

Swipe down the screen, tap "Settings", and scroll down to find "Screen Recordings and Screenshots"

2. File Transfer via USB cable

Step 1, switch on MIRACO, enter the Revo Scan PC home page, get the power cable(the one that came in the package), and be ready.

Step 2, plug in MIRACO with the cable first, and then plug in another end to the Mac.

Step 3, you will see a popup window in MIRACO, select "Data Transfer", click "OK", wait for 10s, see the popup window in Revo Scan PC, tick in the project, click "Import", wait for 15s, the transfer will start.





Step 4, wait for 1 minute and the transfer will complete.

3. File Transfer via WiFi ((to a PC or smartphone))

To a PC(Laptop)

Step 1, make sure your MIRACO and PC connect to the same network.

Step 2, find the project you want to share in MIRACO Model Hub.

​​​​

Step 3, open Revo Scan PC, click "New Project​", click "File" at the top bar, click "Import from MIRACO", click "Wi-Fi".

​

​

​

Step 4, input 4 digits(refresh all the time) in the MIRACO popup window.

​

Step 5, check the Revo Scan PC and wait for the transfer to be completed.

To a Smartphone

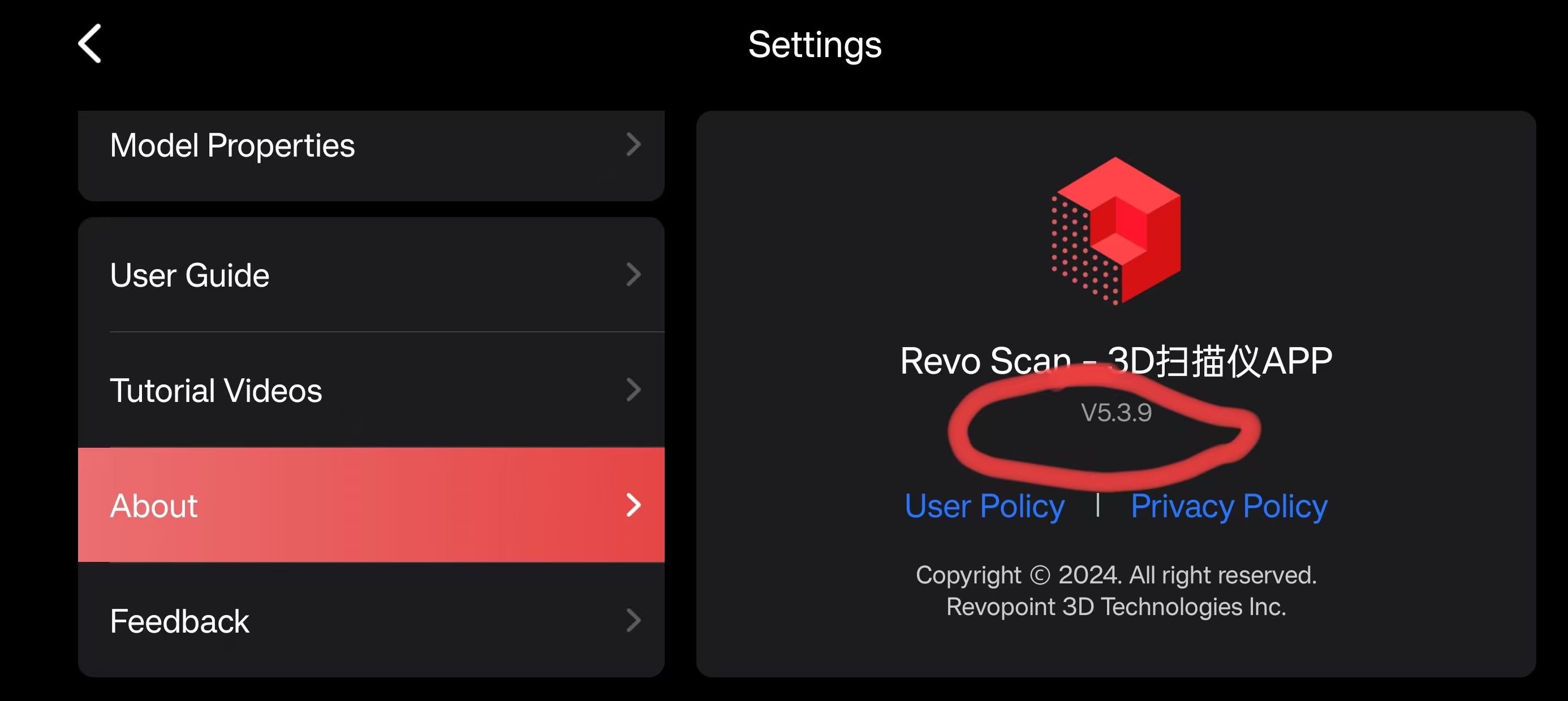

Step 1, download Revo Scan 5.3.9 or newer on your phone

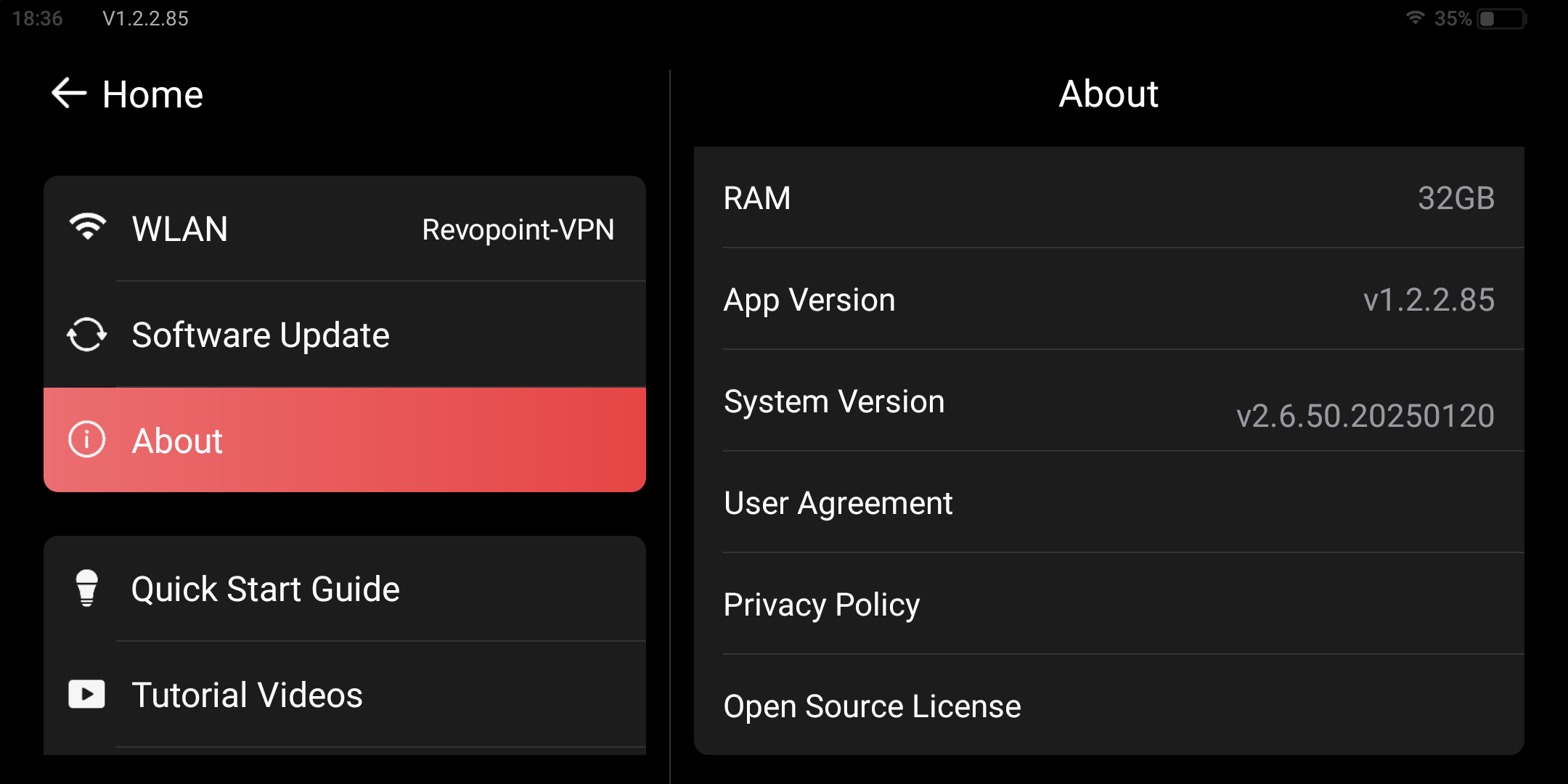

Step 2, update the MIRACO System Version to v2.6.50.20250120 or newer

Step 3, connect both your smartphone and MIRACO to the same wifi network

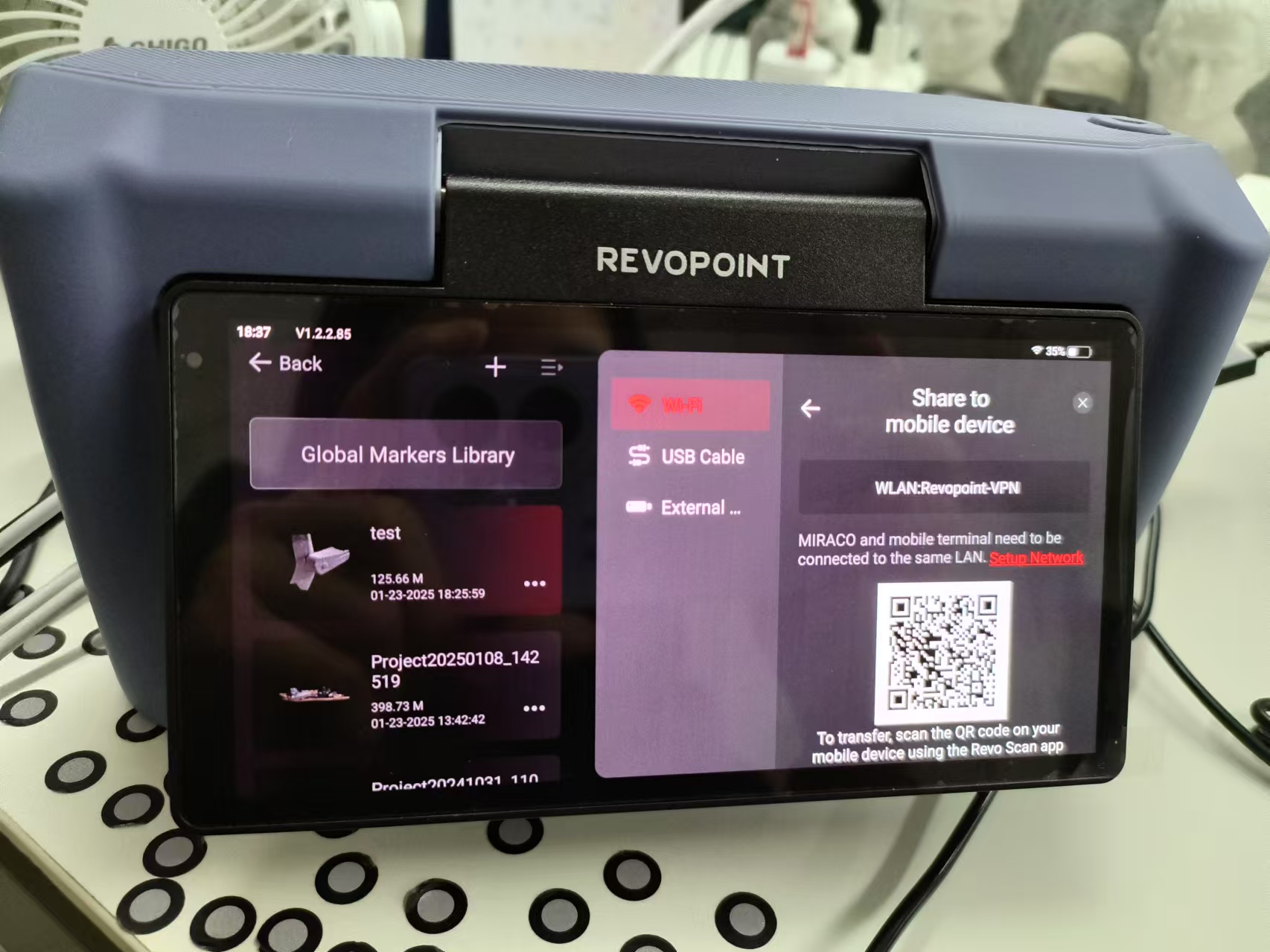

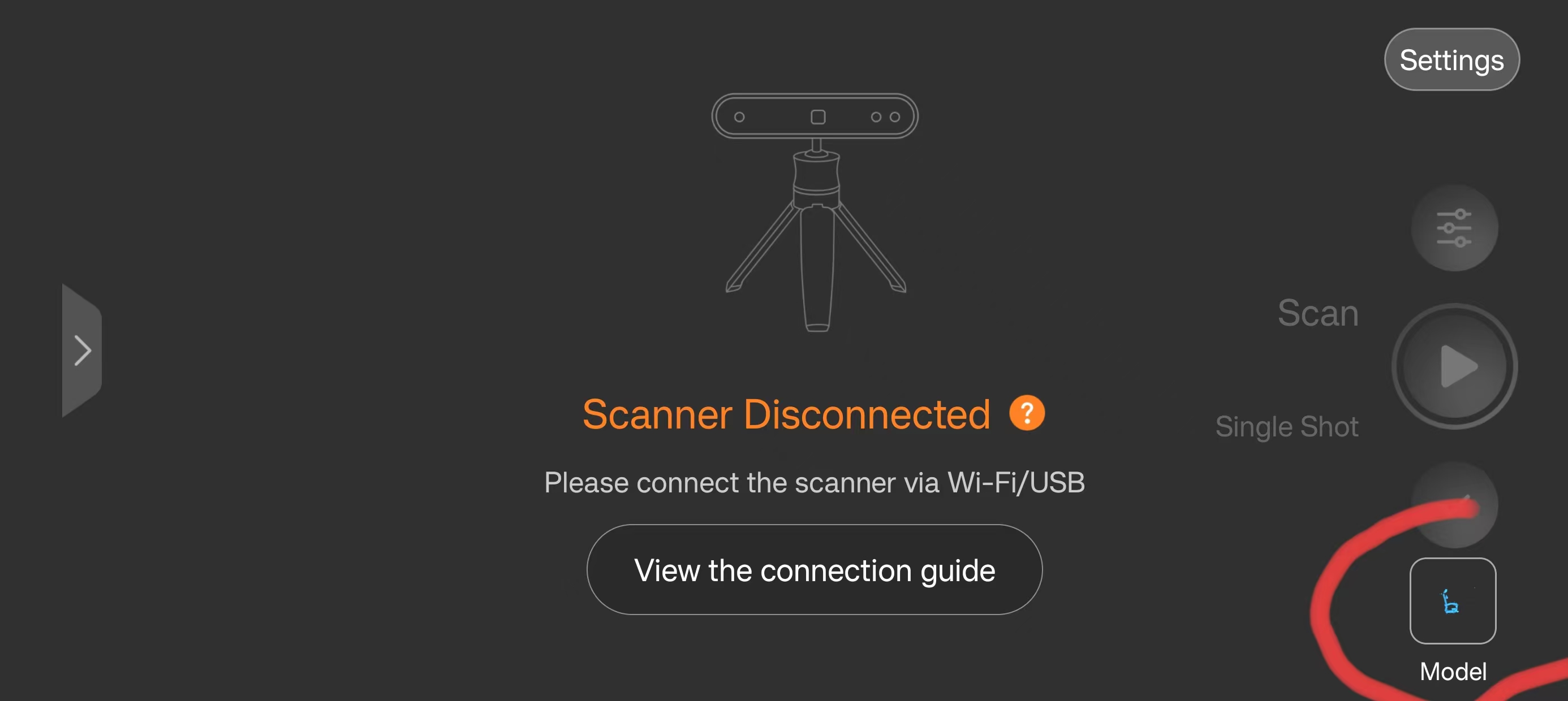

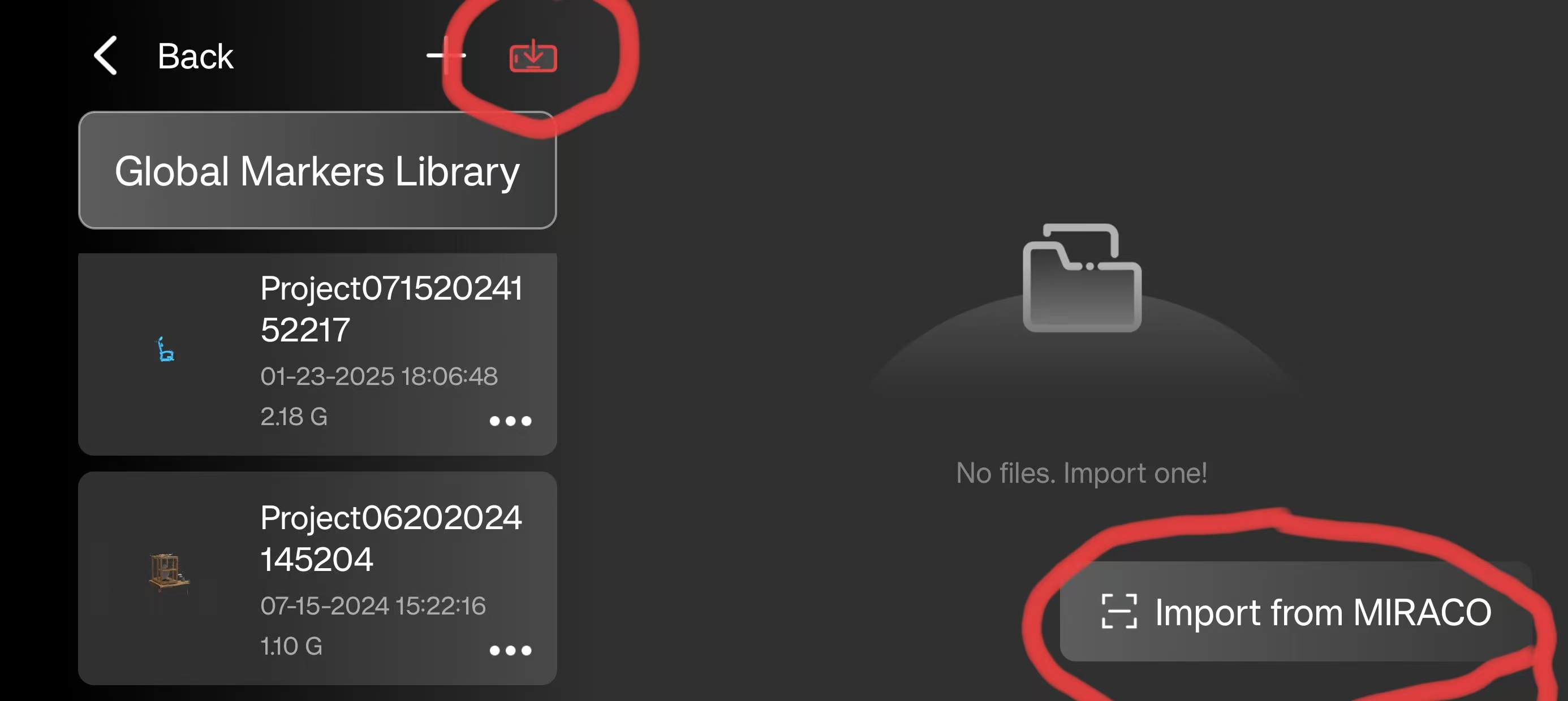

Step 4, open Revo Scan on your phone, go to "Model Hub", click the "Import from MIRACO" icon, go to MIRACO's "Model Hub" or "Screen Recordings and Screenshots", click the "Share" icon, click "Wi-Fi", click "Model file", click "Share to mobile device"

4. Use MIRACO in PC Mode

Step 1, switch on MIRACO, enter the Revo Scan PC home page, get the power cable(the one that came in the package), and be ready.

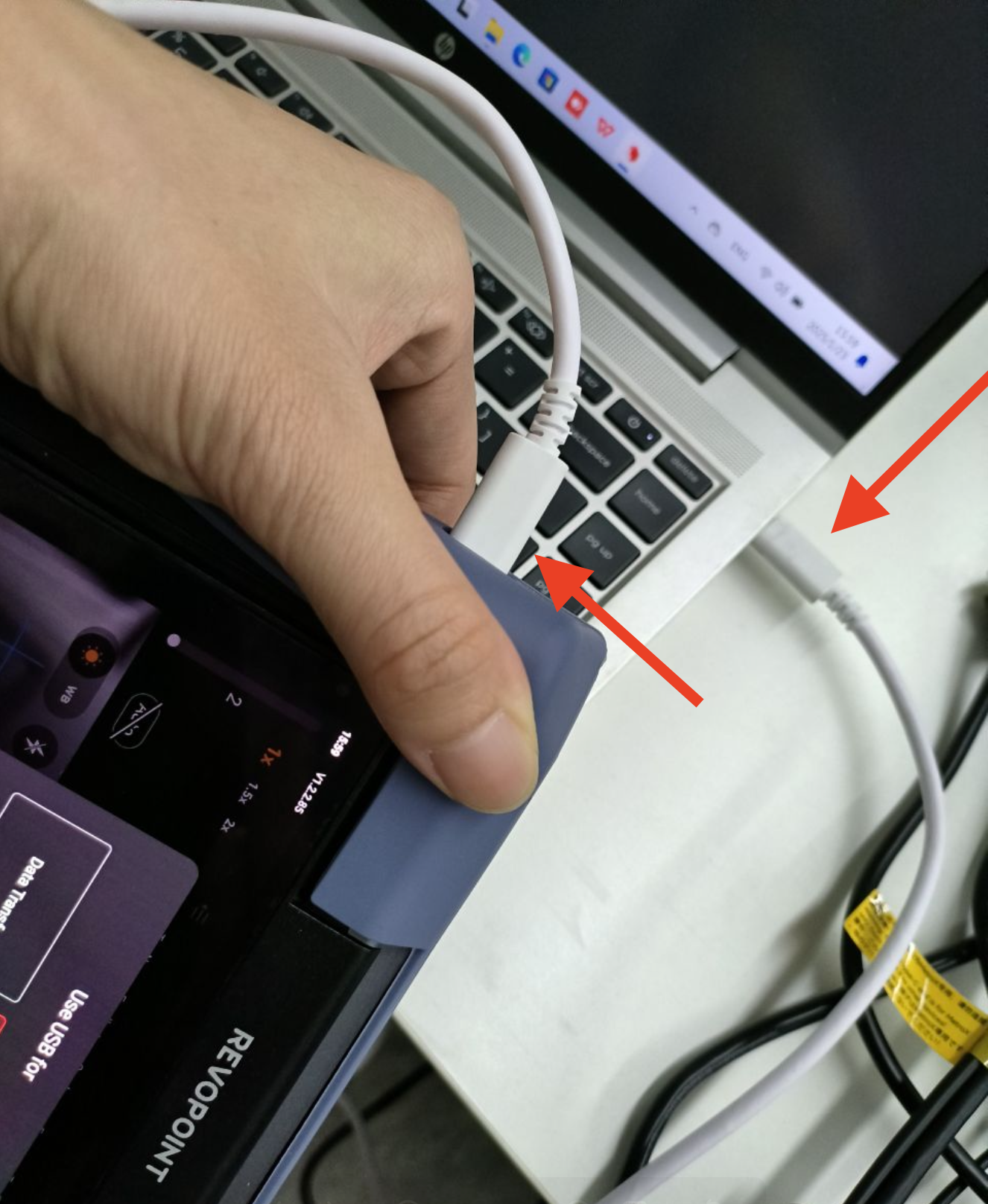

Step 2, plug in MIRACO with the cable first, and then plug in another end to the Mac.

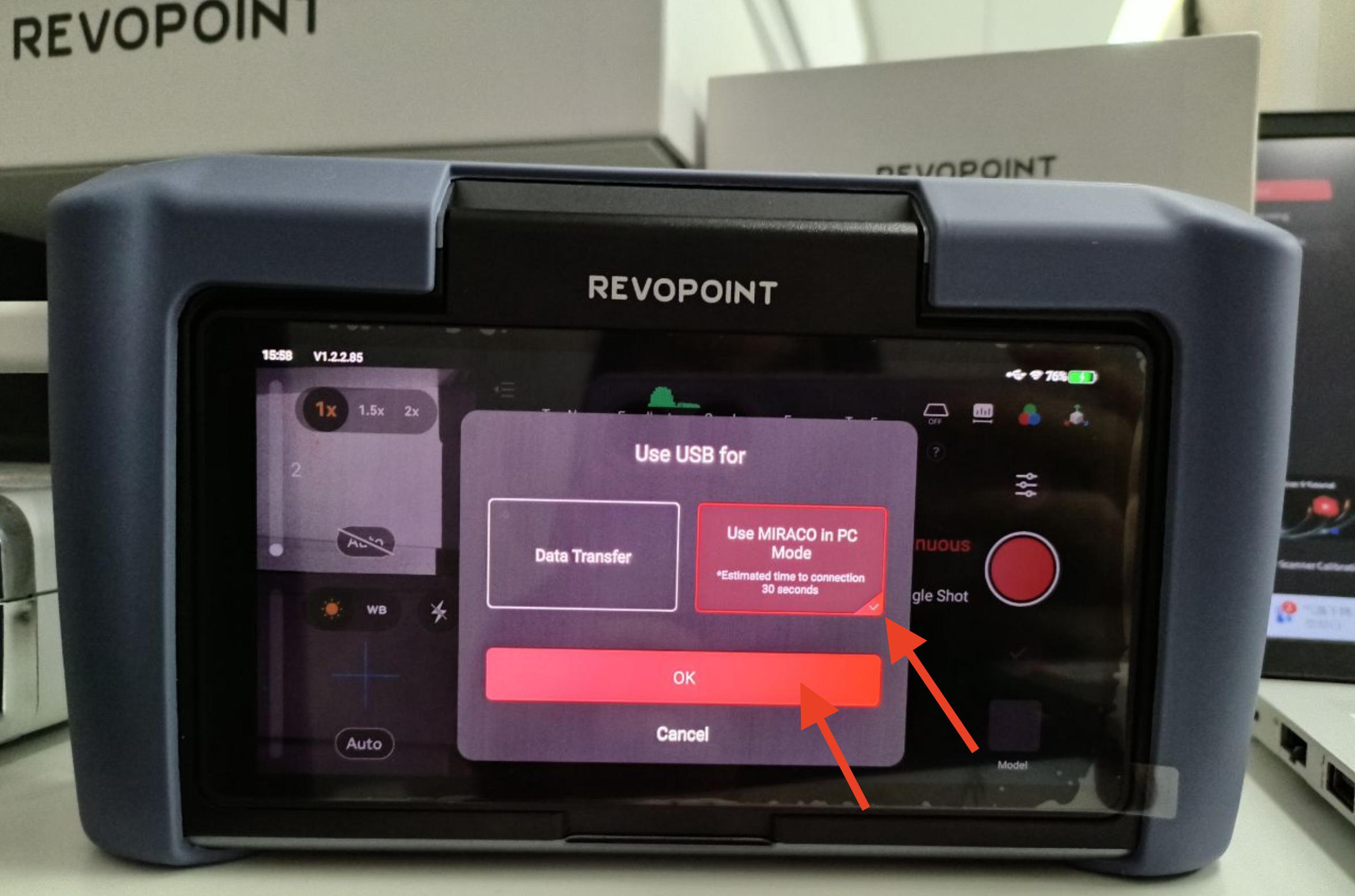

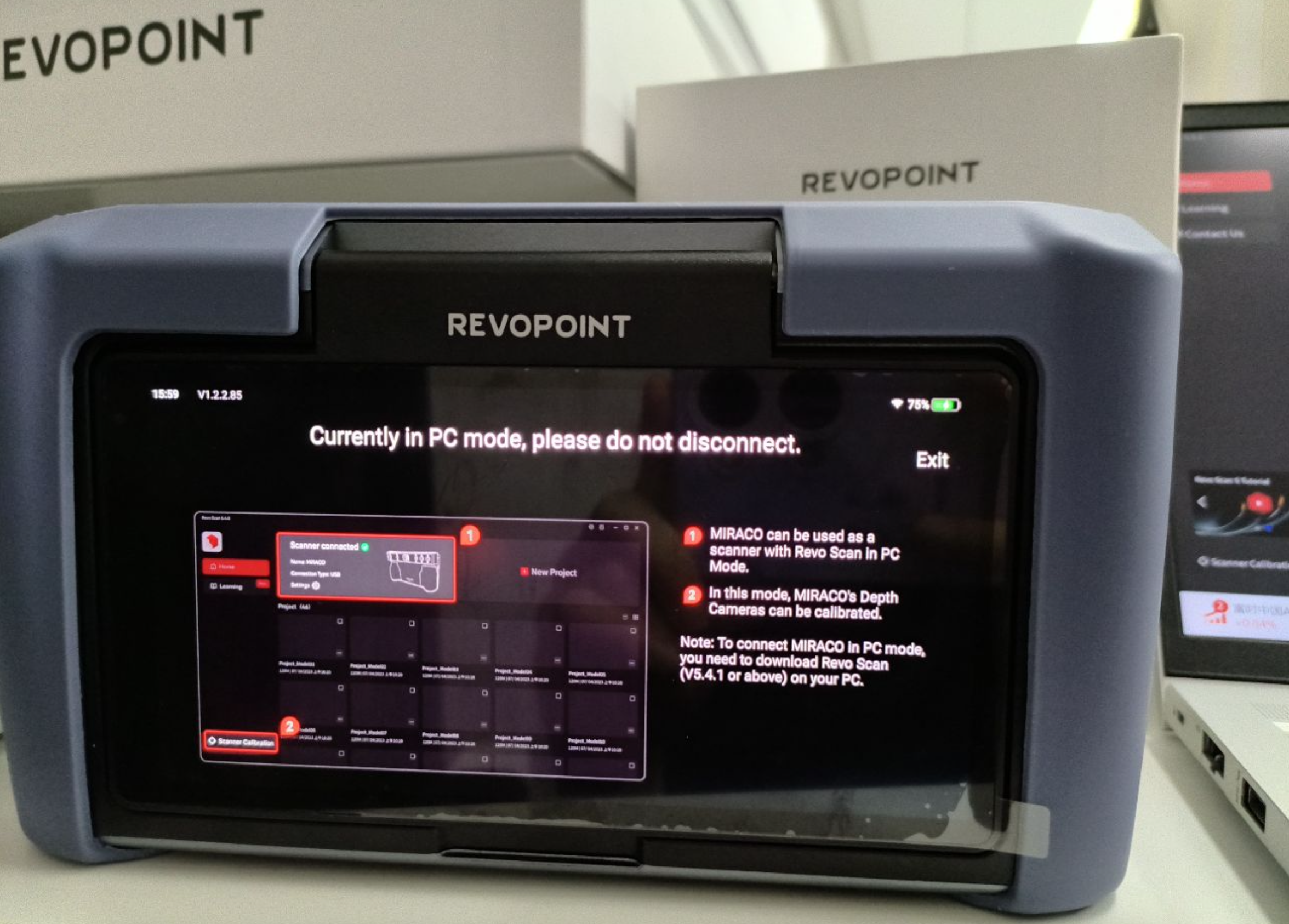

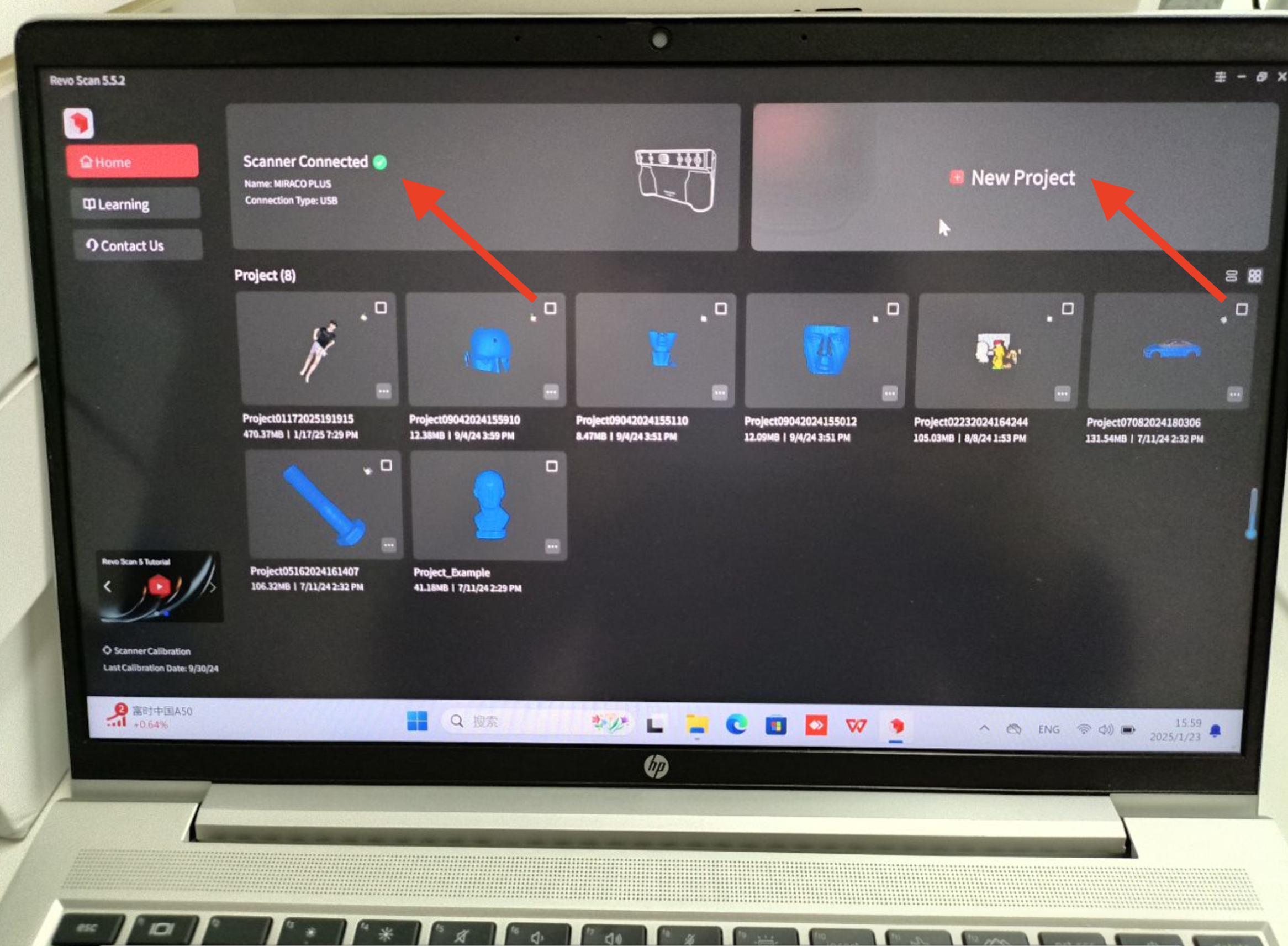

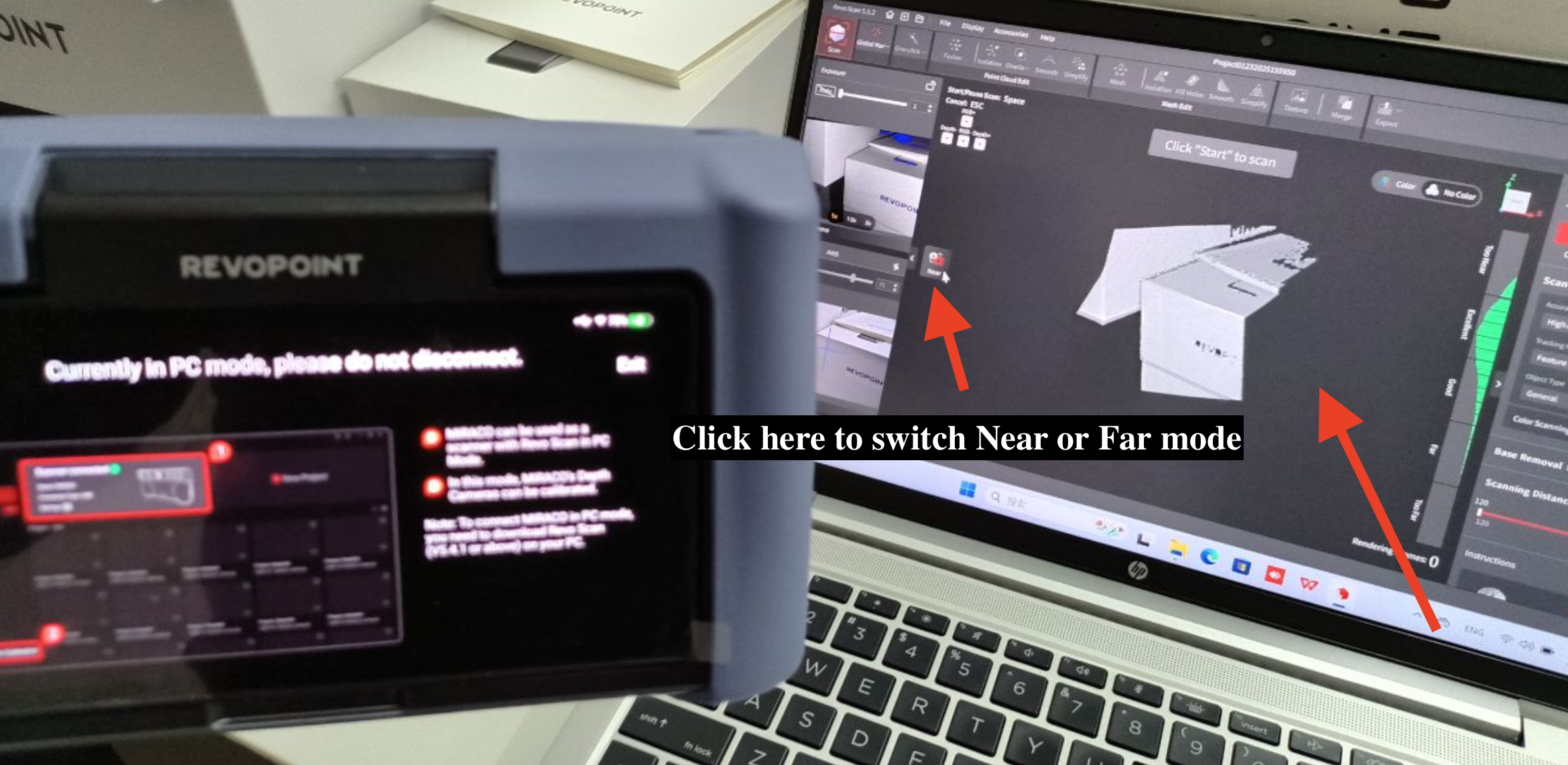

Step 3, you will see a popup window in MIRACO, select "Use MIRACO in PC Mode", click "OK", check the connection status in Revo Scan PC, wait for 15s, once the status displays Connected, click "New Project" to start.
