POP 4: Wi-Fi Connection(wifi) for Android/iPhone/iPad

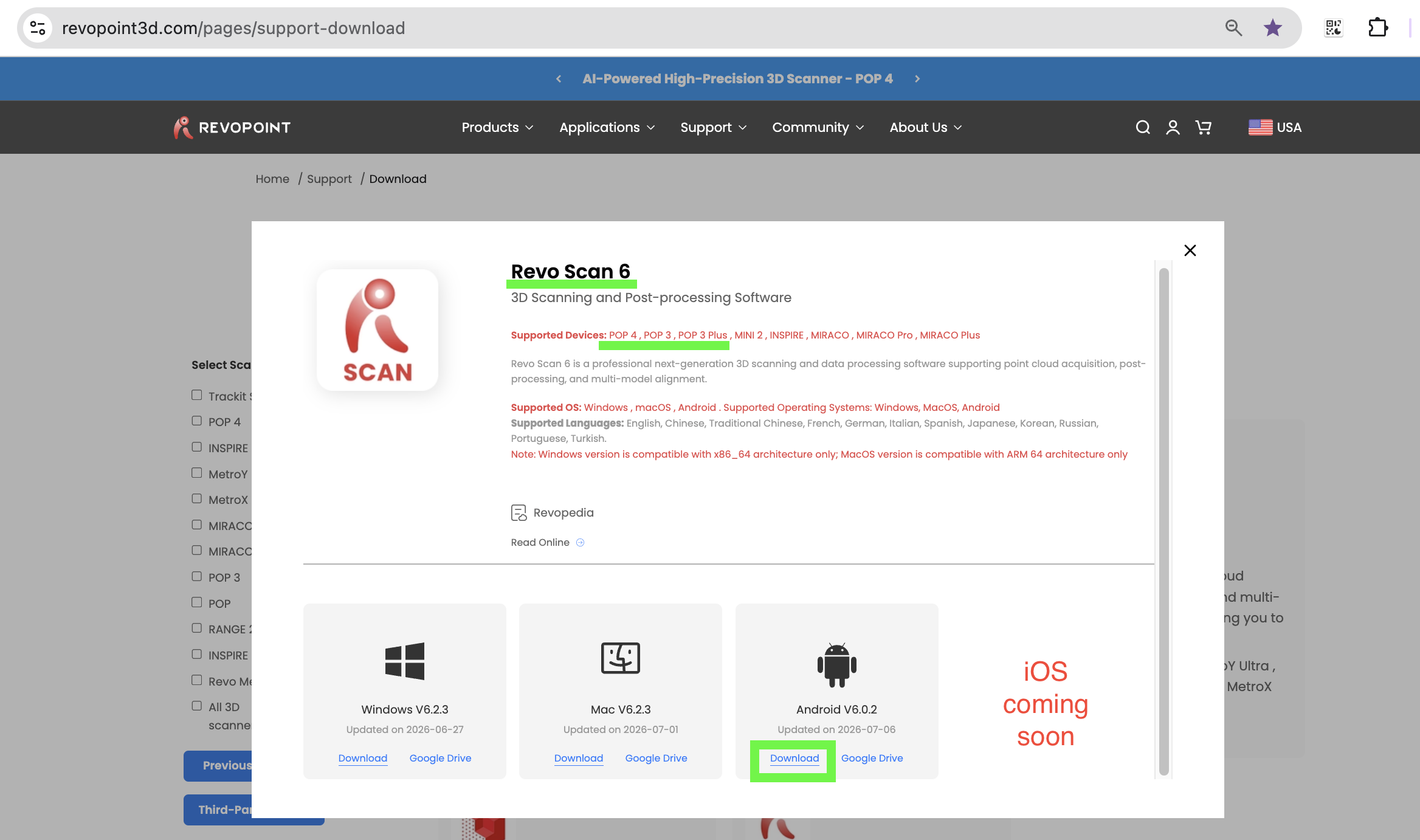

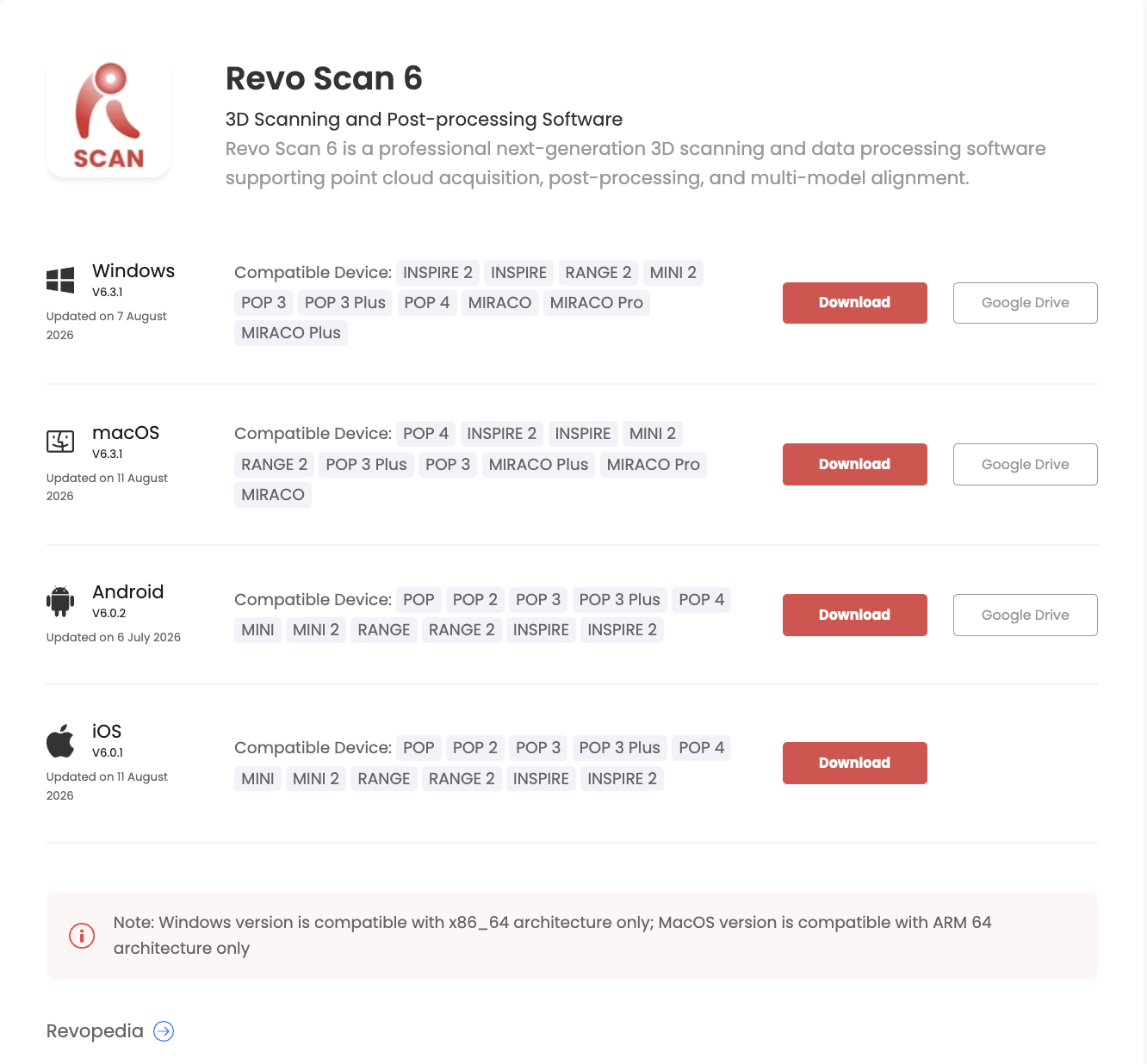

Download the Correct Software: https://www.revopoint3d.com/pages/support-download

External power supply is required, either from a power bank or a wall socket. If powered by a computer, it will be recognized as a USB connection by default.

Note: Only Wi-Fi is supported for the POP 4 mobile app connection.

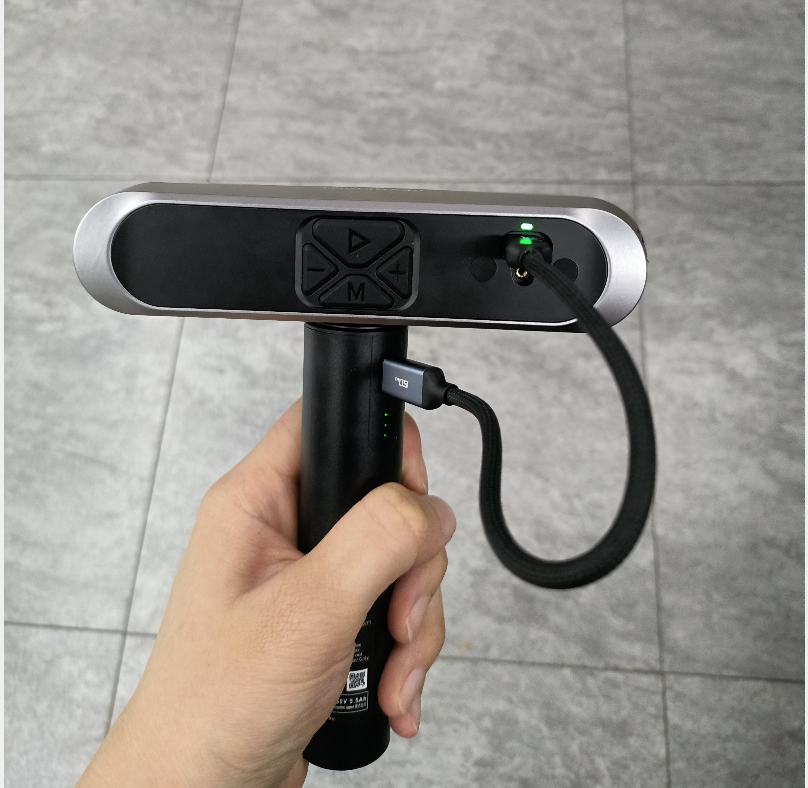

(If you own a power grip, please power POP 4 in this way👆)

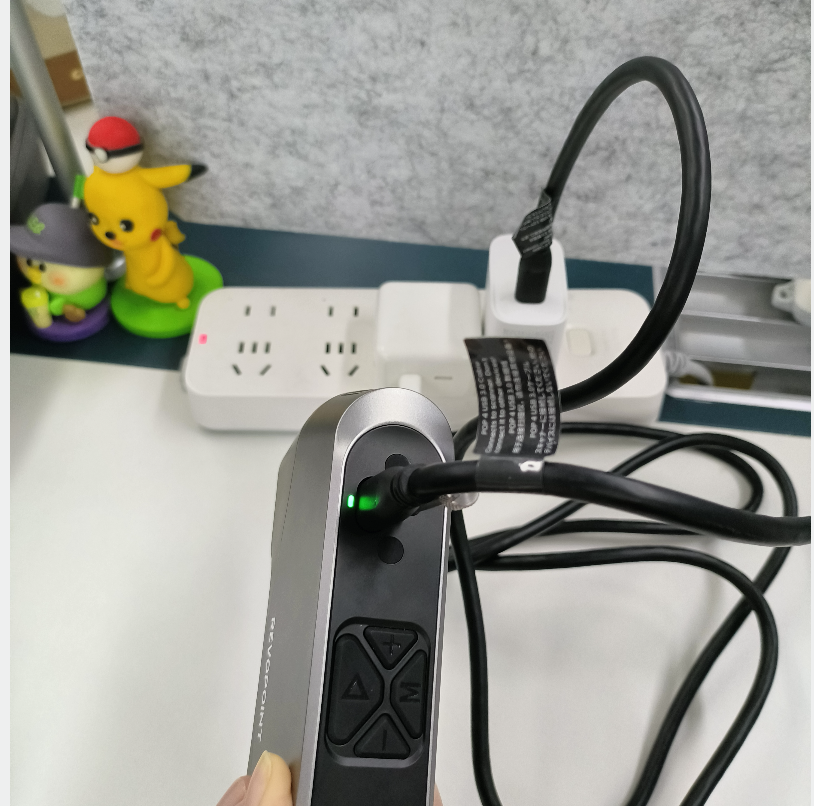

(If you don't own a power grip or any power bank, you can power POP 4 in this way👇 by using the 2-meter cable)

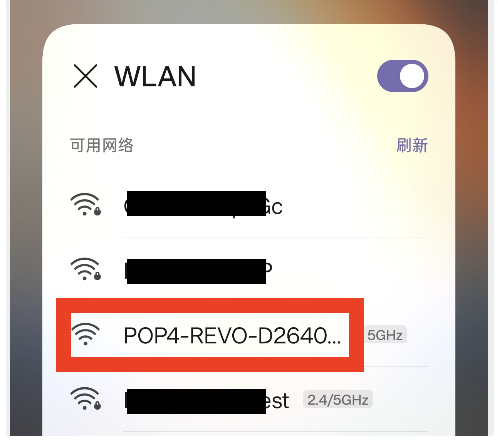

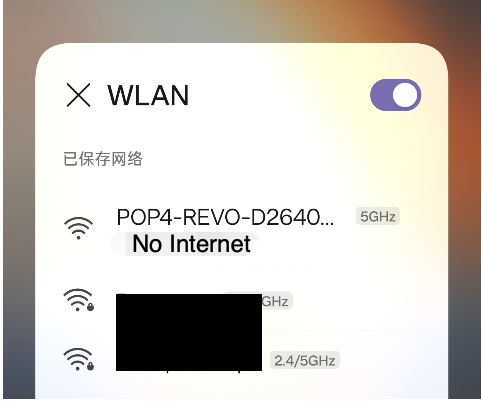

Once the indicator light turns green, open the WiFi list on your phone, find the scanner's WiFi name, and connect to it without a password.

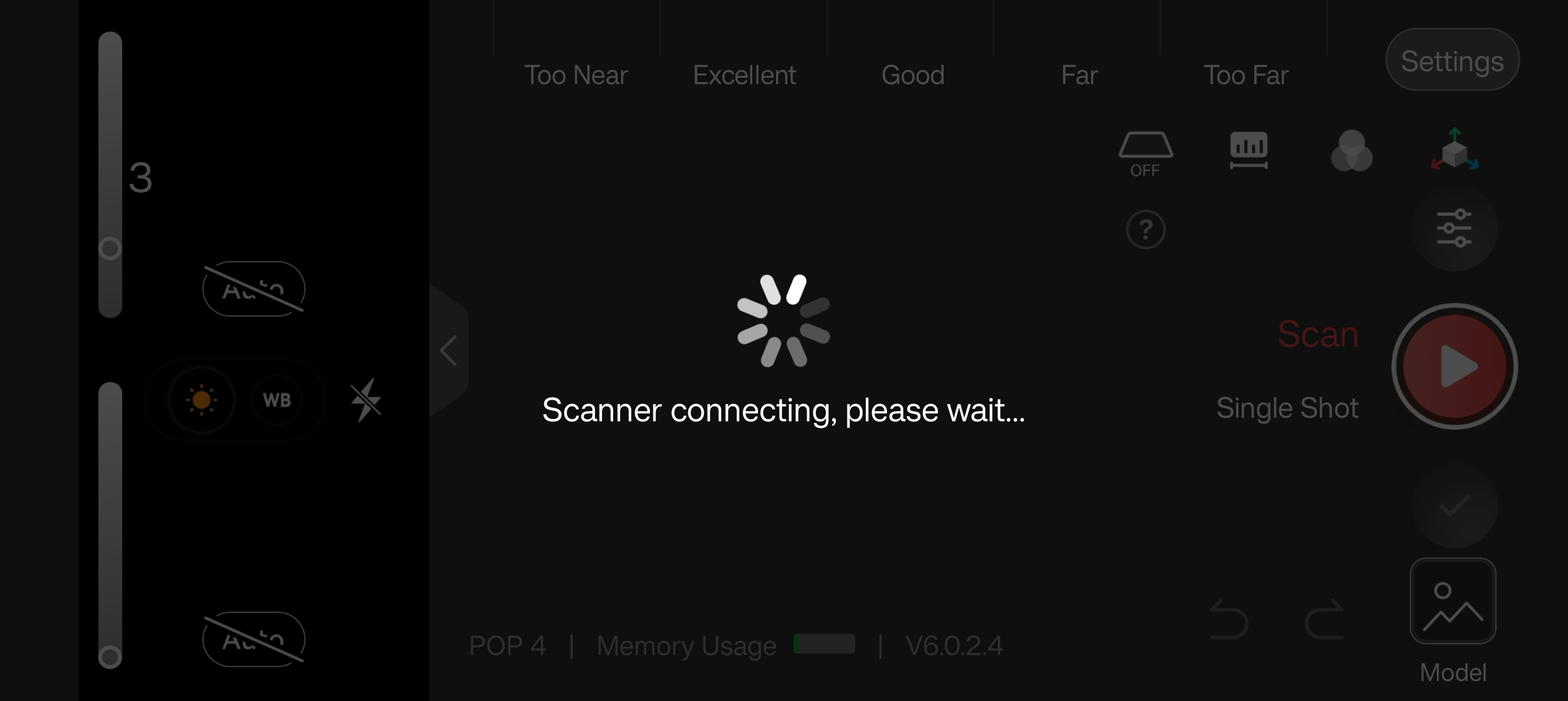

After a successful connection, open Revo Scan 6 to see that the scanner is connected.

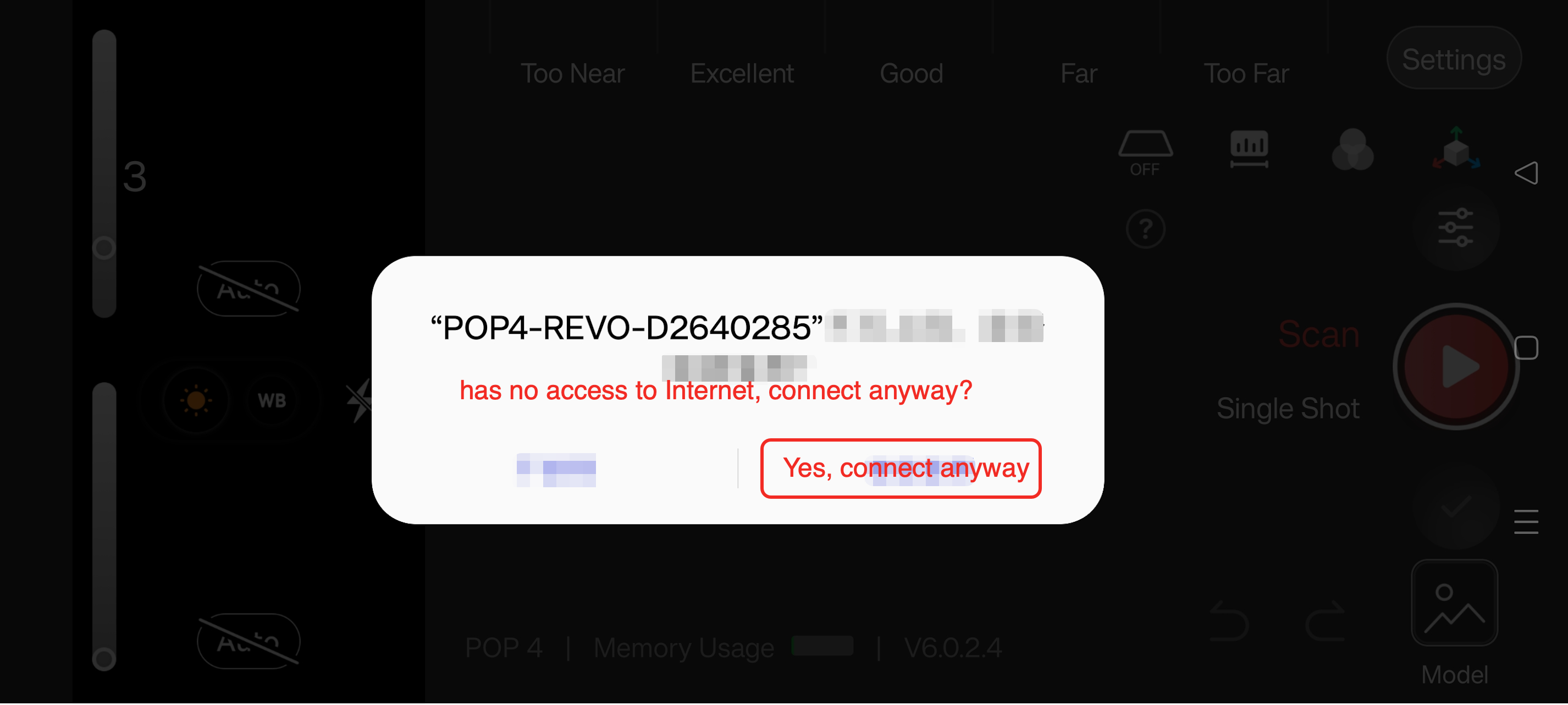

⚠️ If you see a prompt saying "This WLAN network has no Internet access. Connect anyway?", select "Yes, connect".

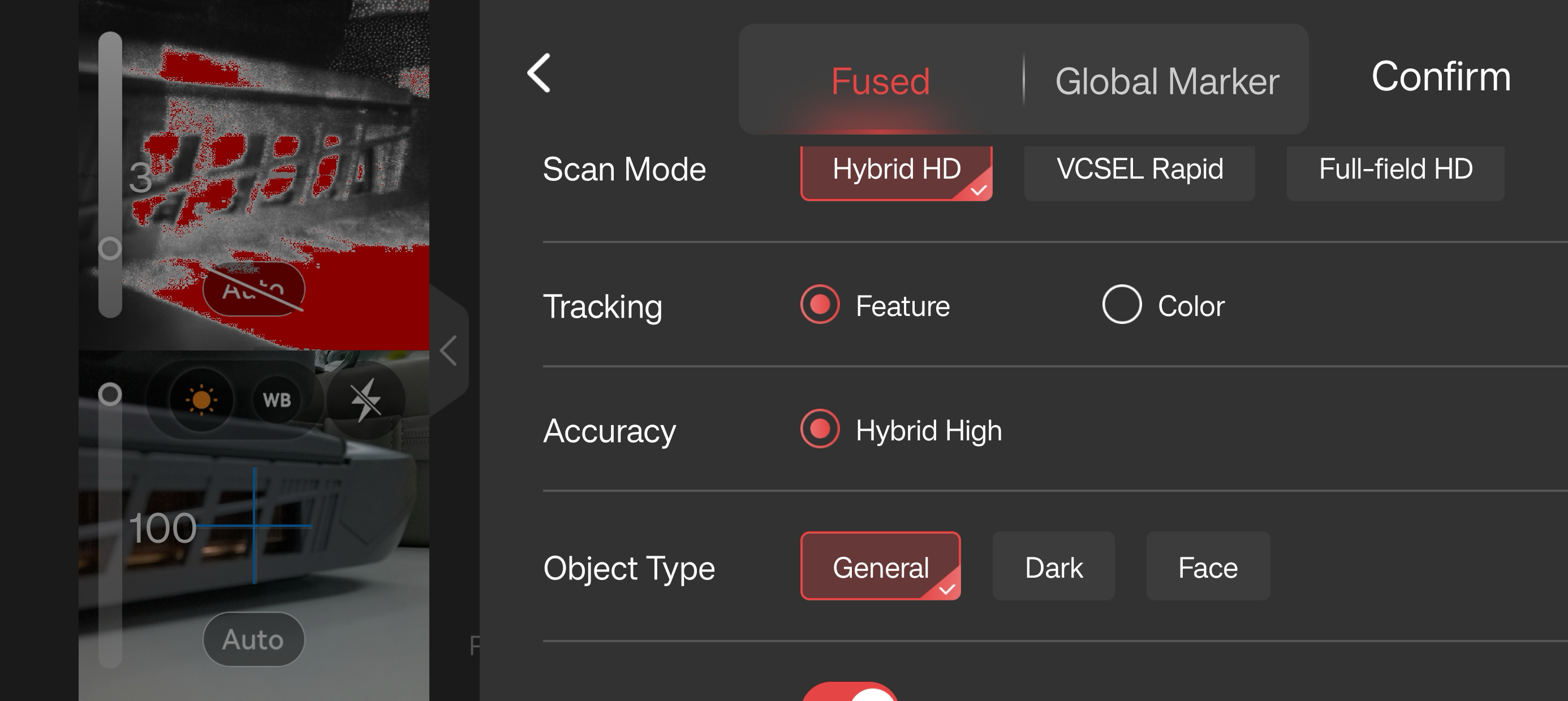

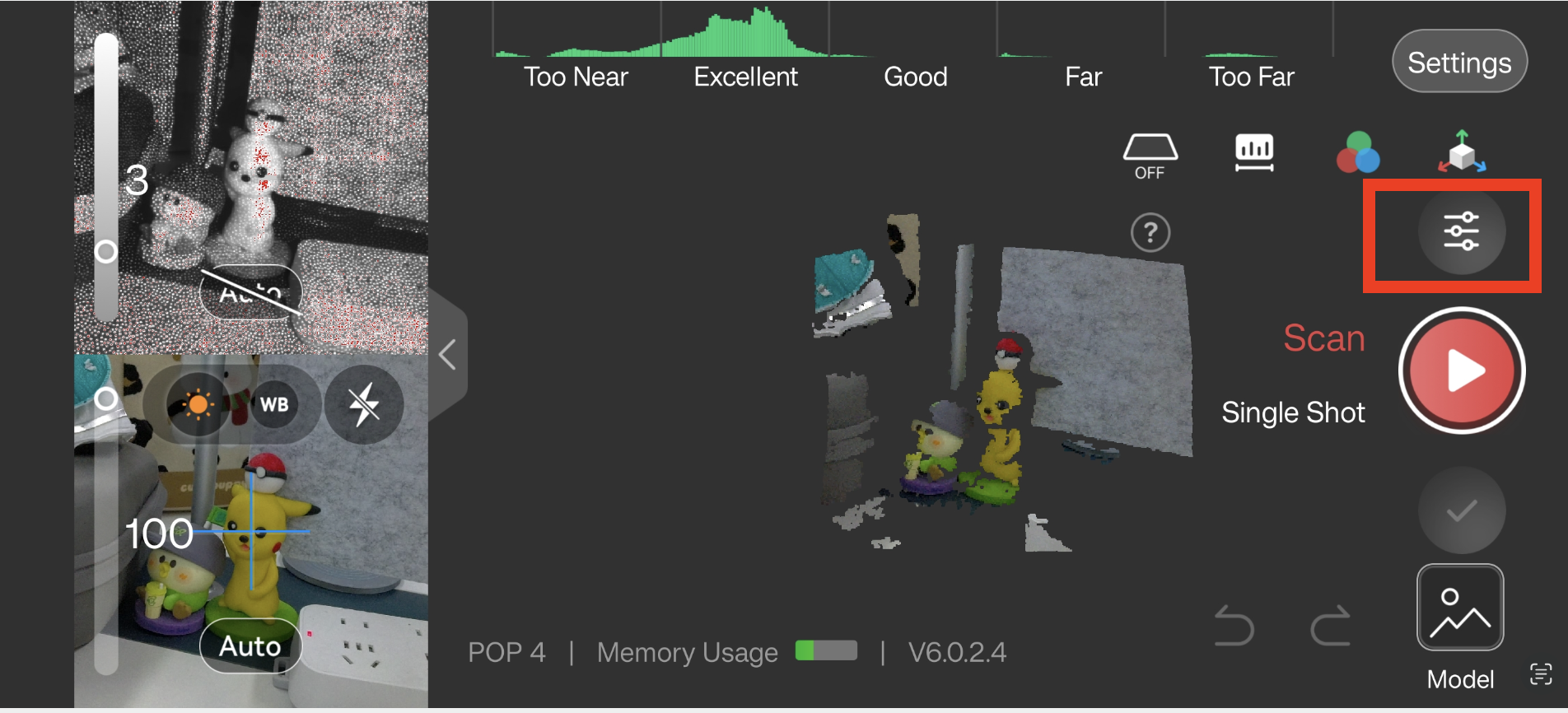

After connecting, click the "Menu" button to do the settings as needed.

POP 4 video tutorials:

POP4 user manual: https://revopedia.revopoint3d.com/en/popseries
