MetroX: USB Connection

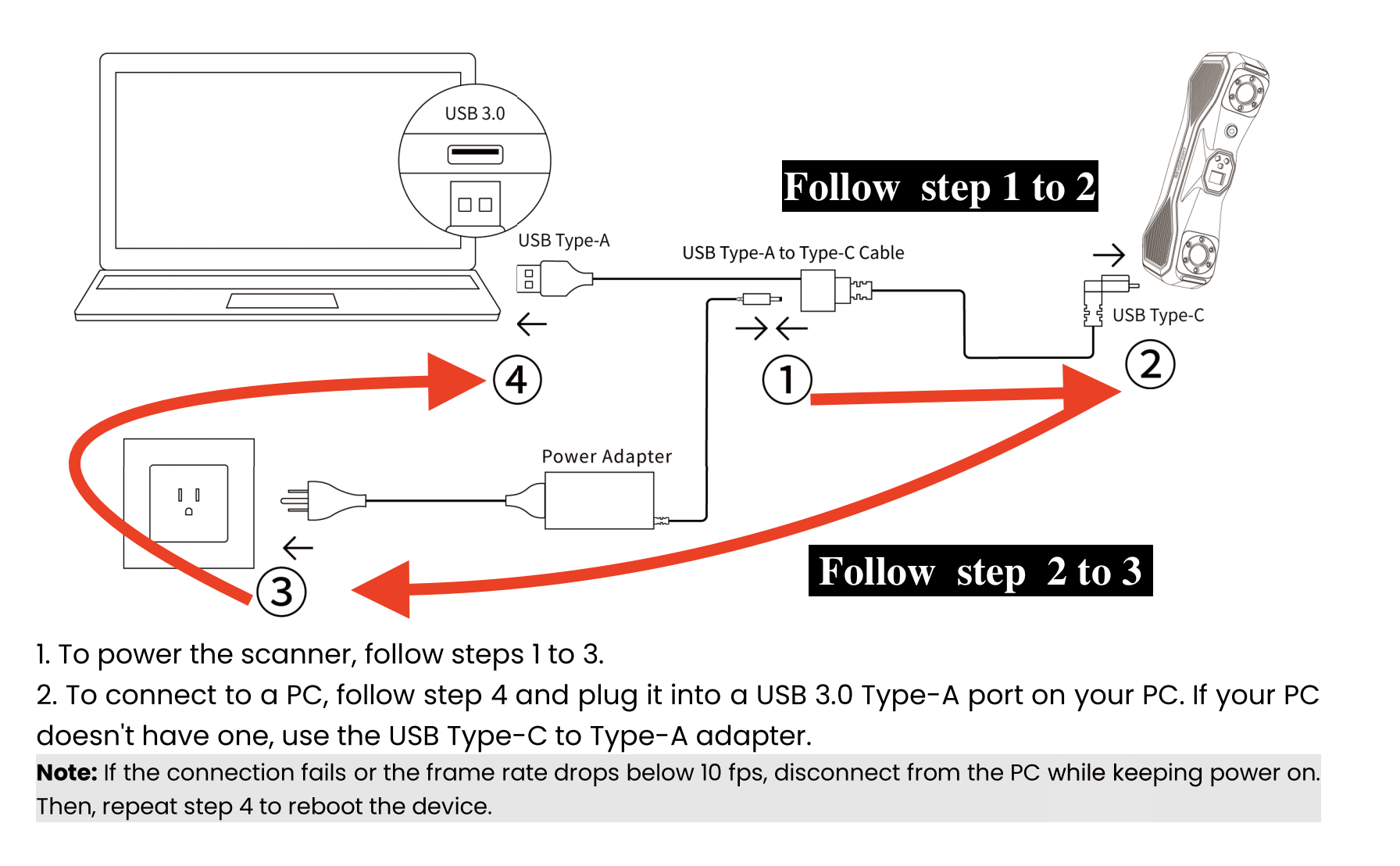

Please follow the steps below to connect the MetroX, from Step 1 to Step 4, in order:

• Firstly, power on the scanner using the power adapter.
• Once you hear the fan running, connect the scanner to the PC using the USB cable.

To successfully connect the MetroX,

1, download the correct software

https://support.revopoint3d.com/hc/en-us/articles/7777366956827-How-do-I-download-and-use-the-software-Revo-Scan

2, connect the scanner in the order shown above

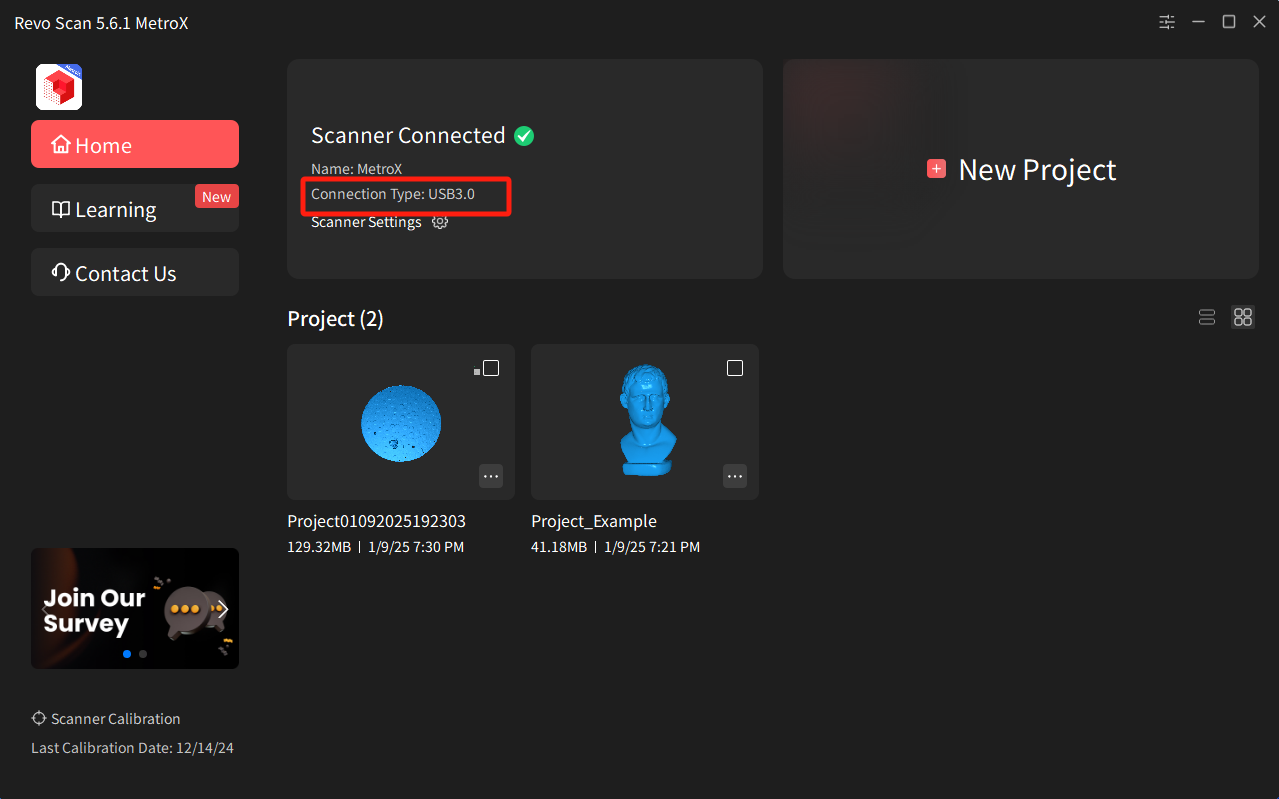

3, the software should display the connection type as USB 3.0. If it shows as USB 2.0, try the following:

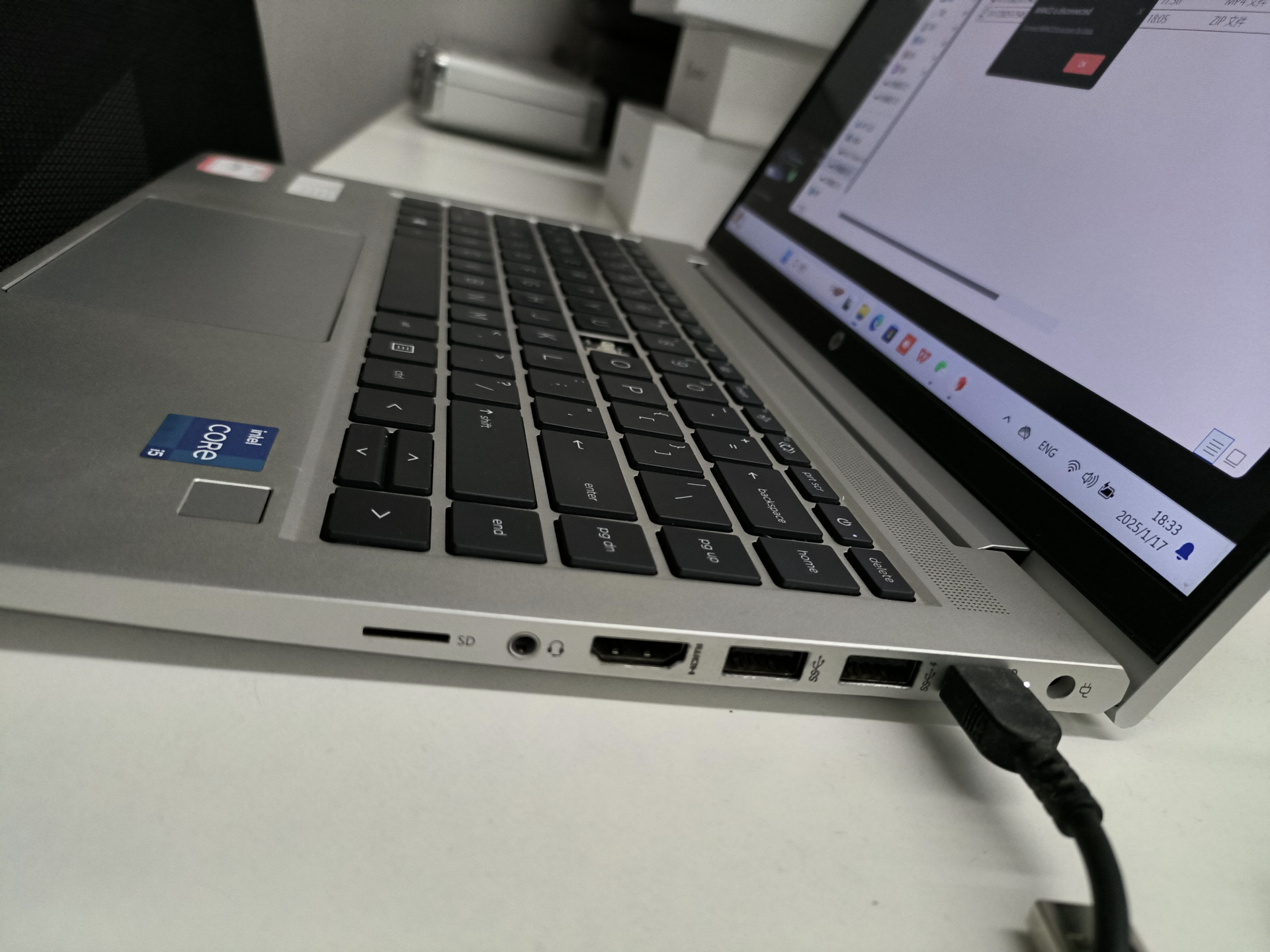

• Use a different USB port,

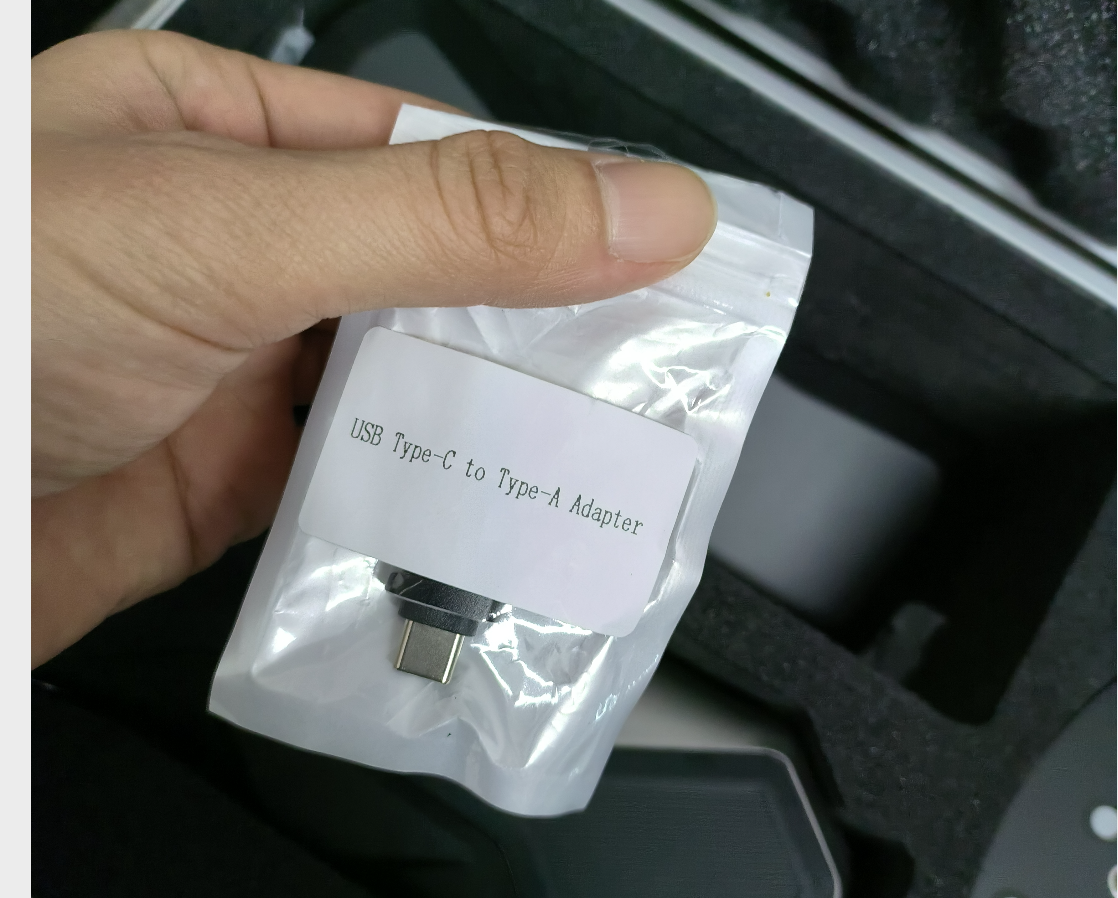

• Use the small Type-C adapter, or

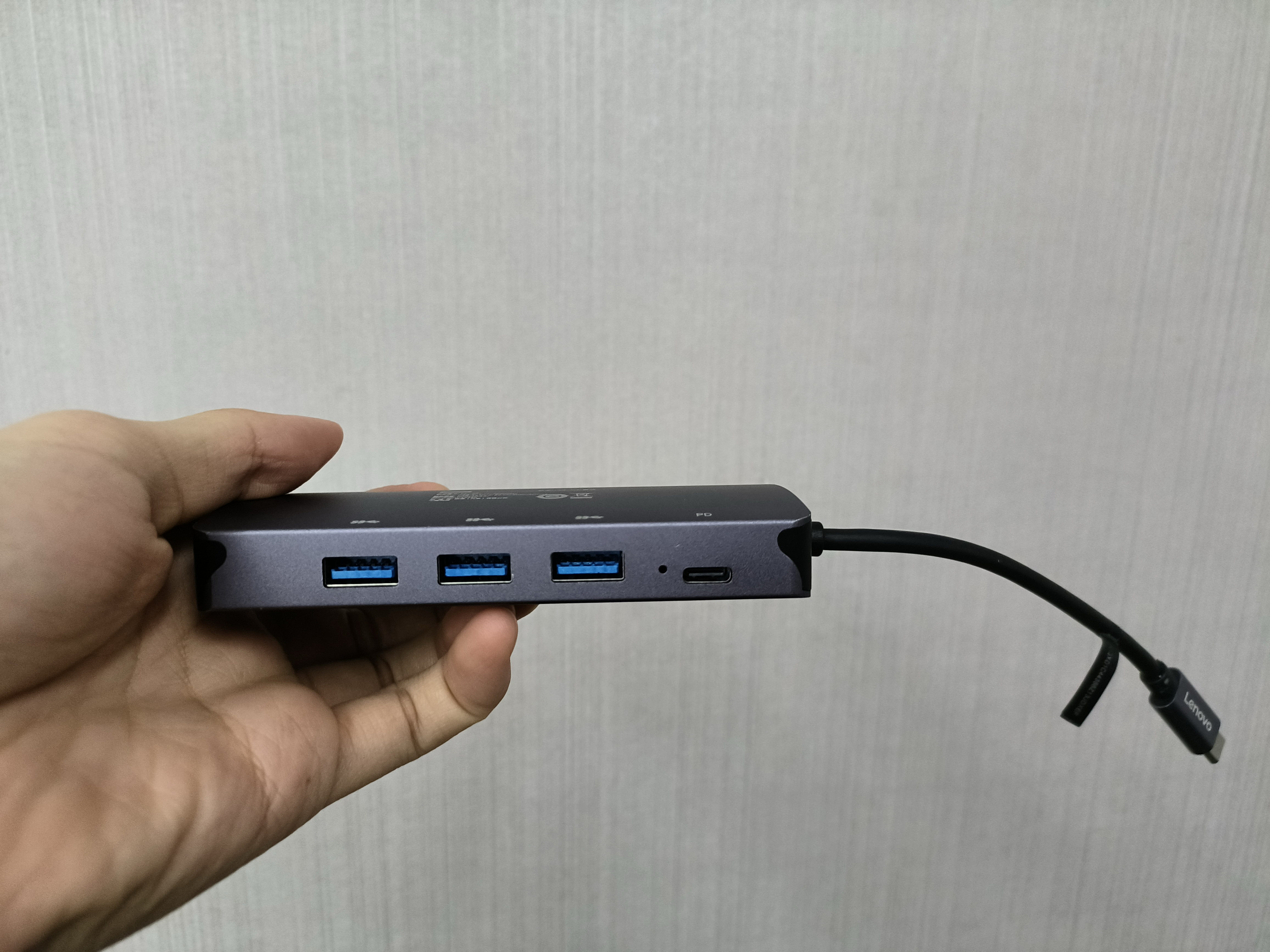

• If available, use a USB 3.0 adapter.

Note: It is recommended to keep the PC charged while using the scanner.

Troubleshooting:

Error Messages - I have a problem connecting the MetroX
