In Revo Scan, there are multiple methods to delete markers.
Solution 1: Removing markers before or during the fusion process.

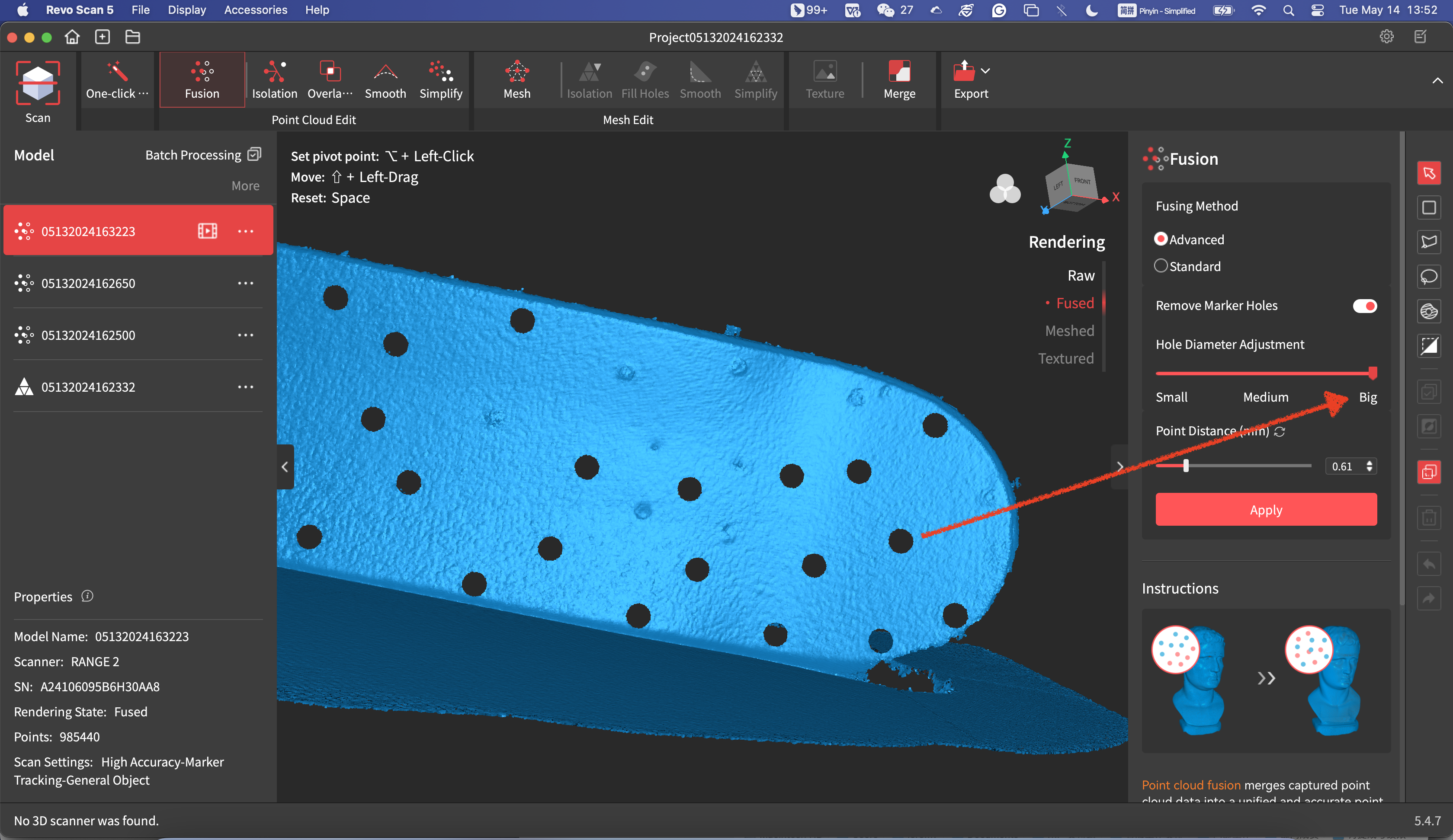

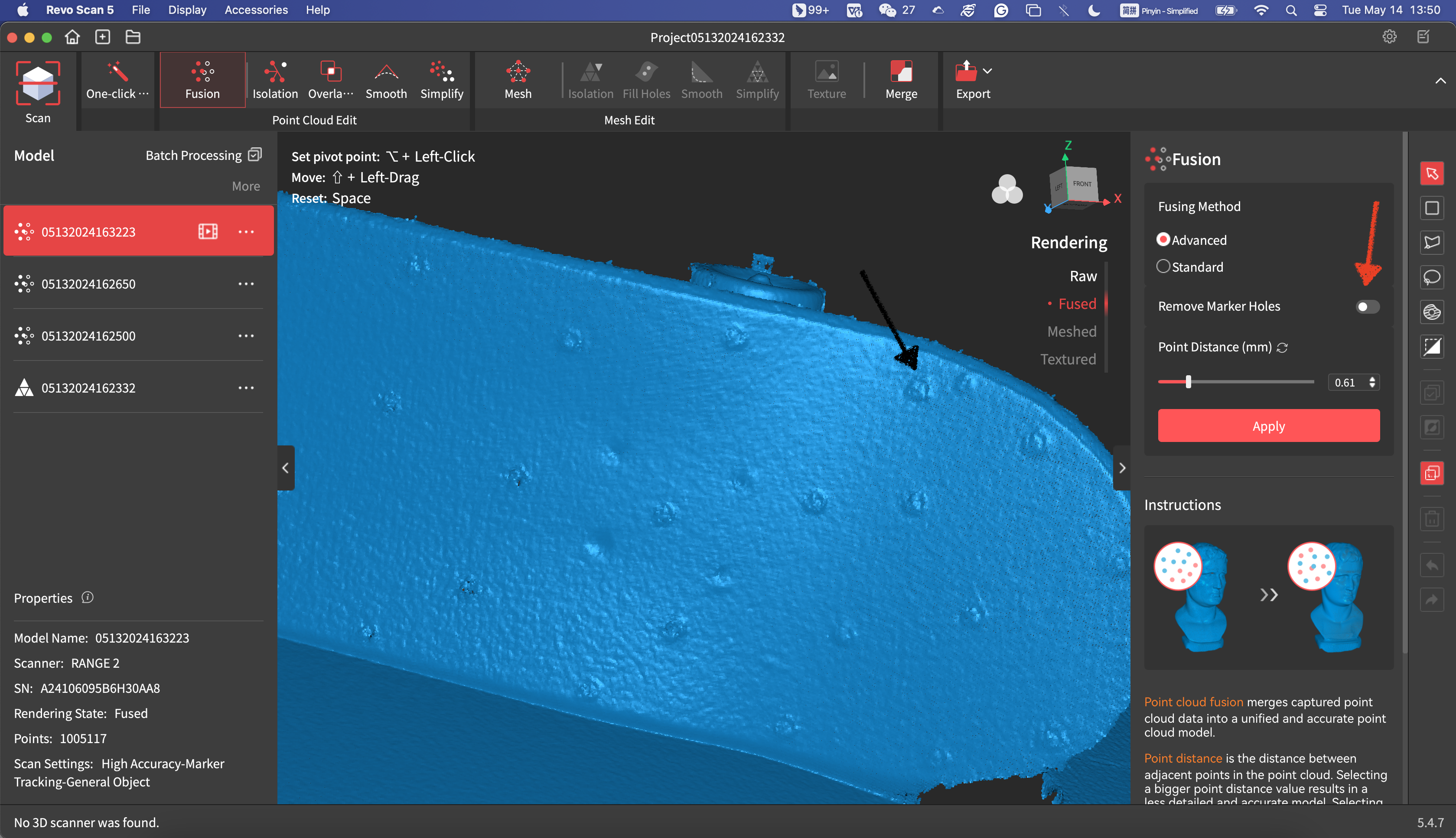

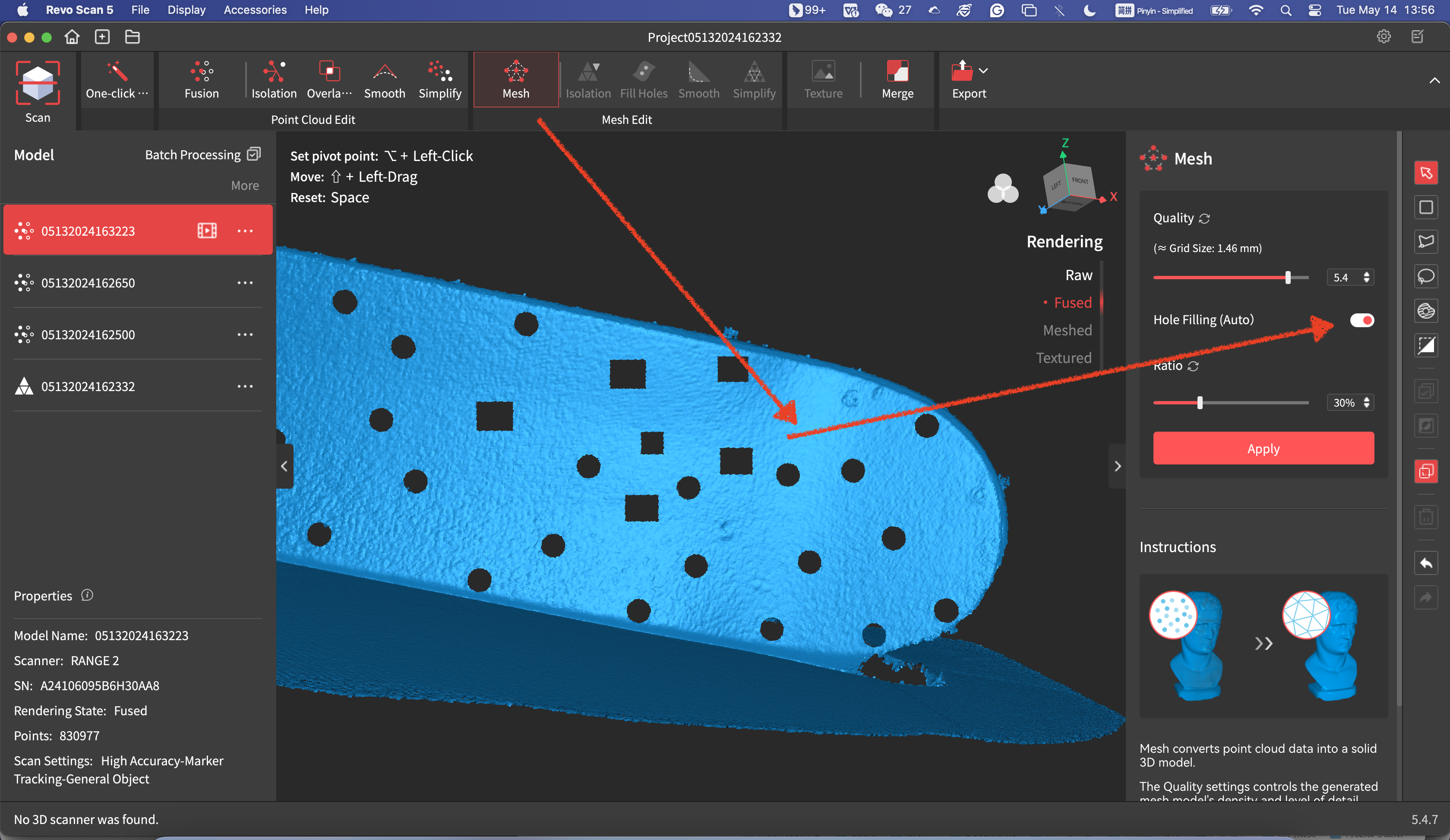

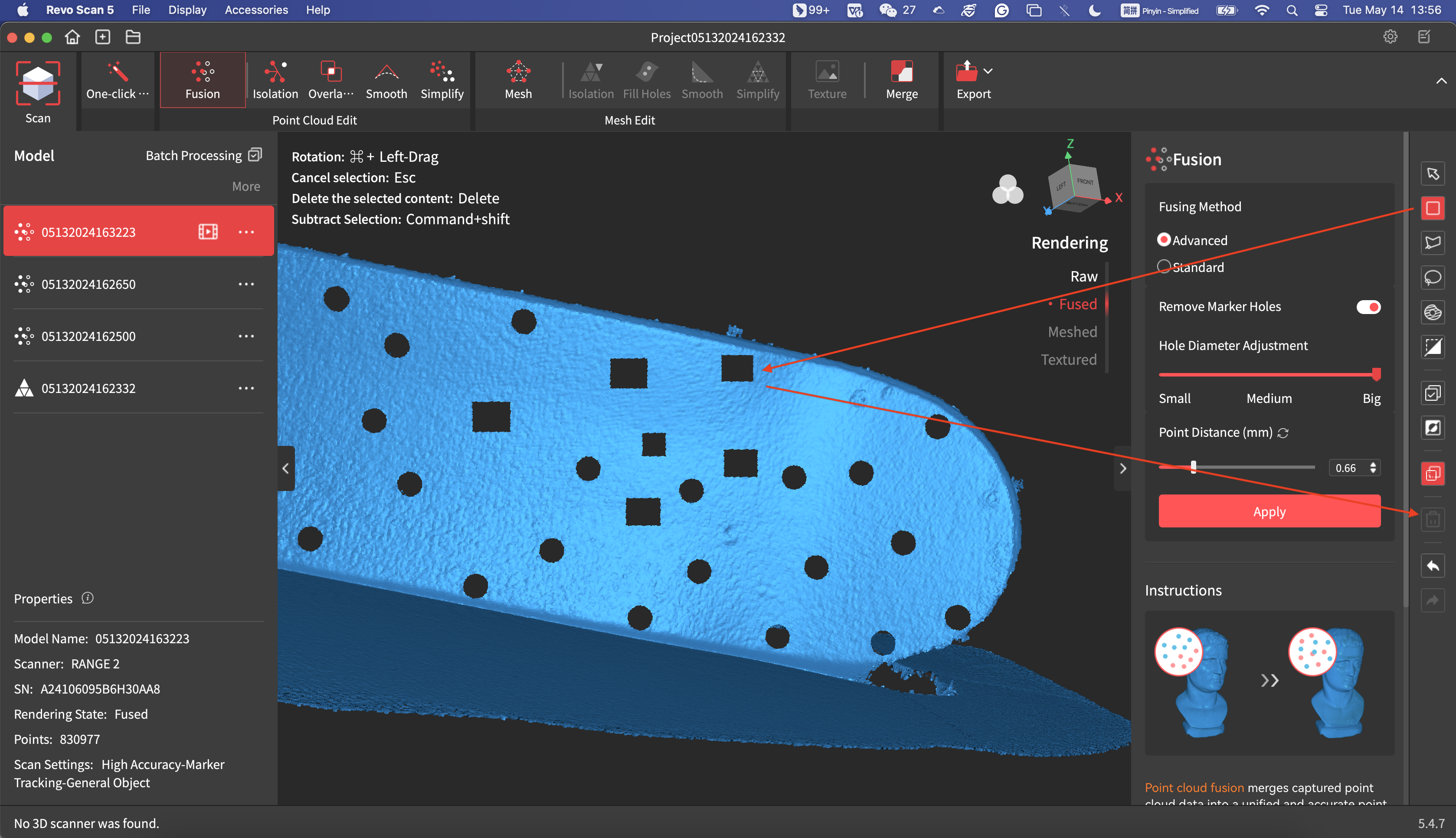

While fusing the point cloud, you can enable the "Remove Marker Holes" feature. Adjust the hole diameter and point distance according to your specific requirements. In case some markers cannot be detected, you can use the Rectangle or Lasso tool located in the right sidebar to select and delete them.
Solution 2: Removing markers after the meshing process.

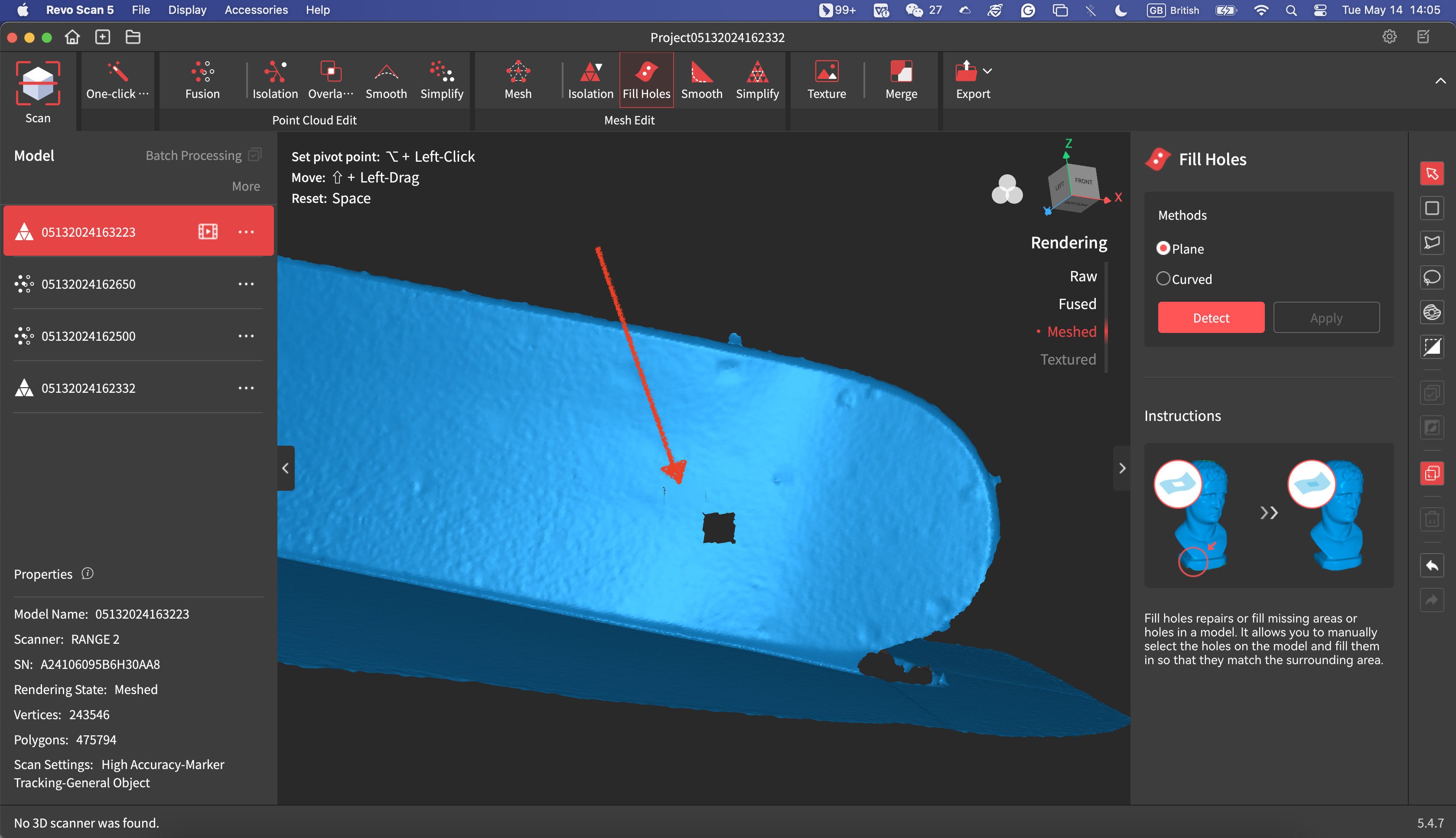

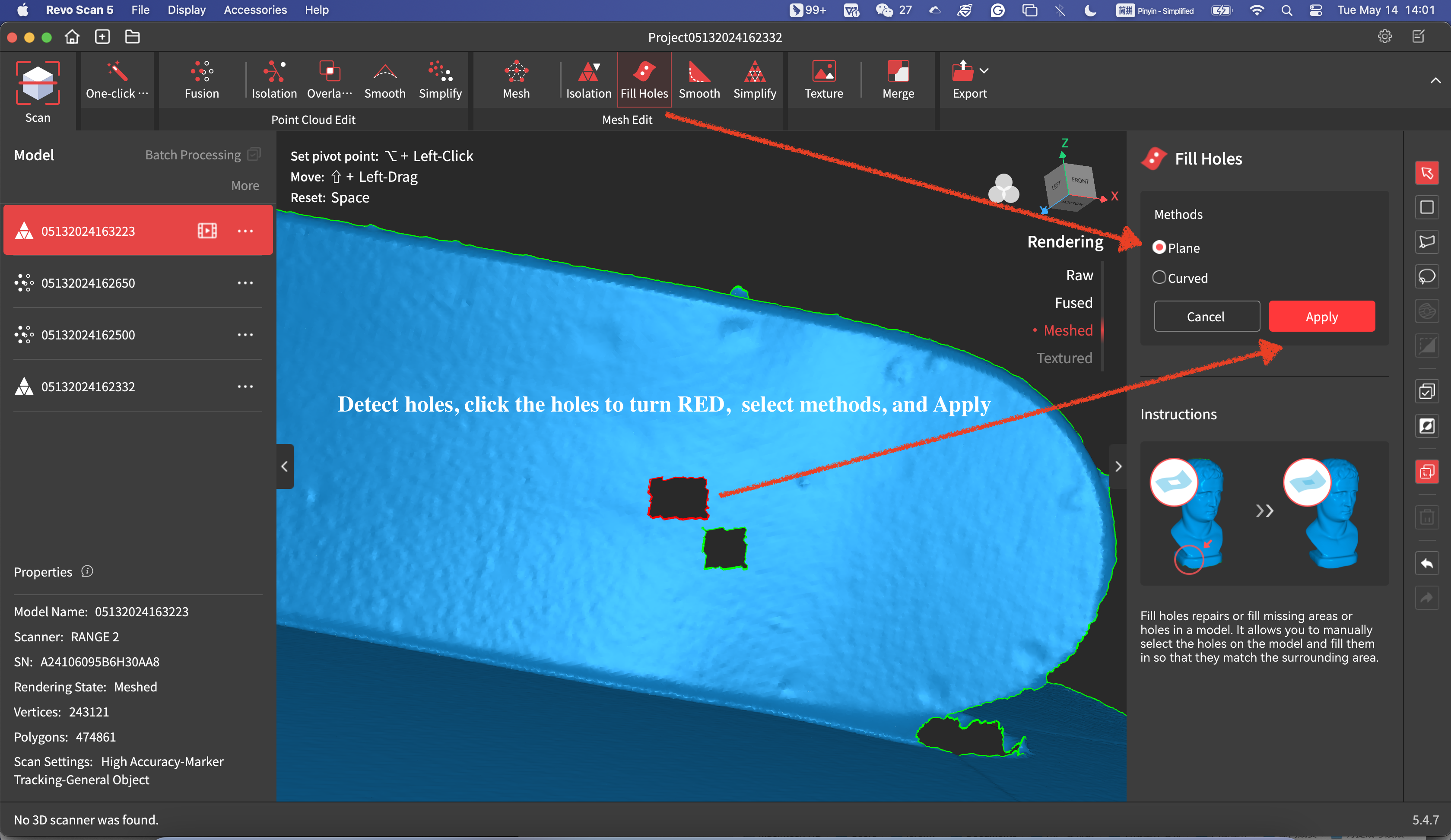

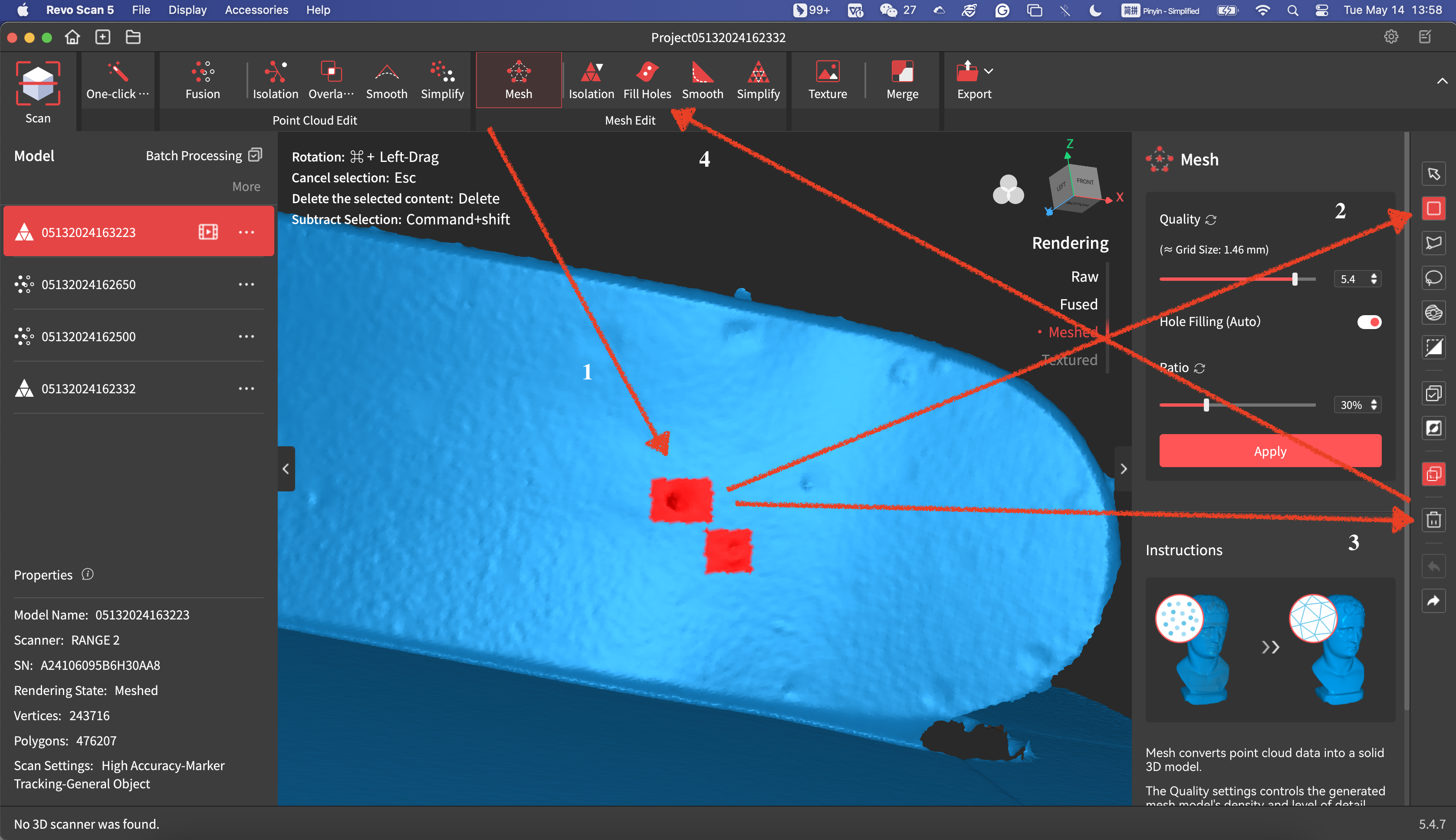

Utilize the Rectangle or Lasso tool in the right sidebar to select the markers. Delete them first, then click the "Fill Holes" button on the top bar. Proceed to detect and select the holes, and choose the appropriate method to fill them based on the surface curvature.
