Situation: Using the 2-in-1 Mobile Cable to connect the scanner and Power Bank Handle, or use the USB Type-C to Type-C Data Cable to connect the scanner and power socket, and the scanner's indicator 2 turns solid green, it's powered.

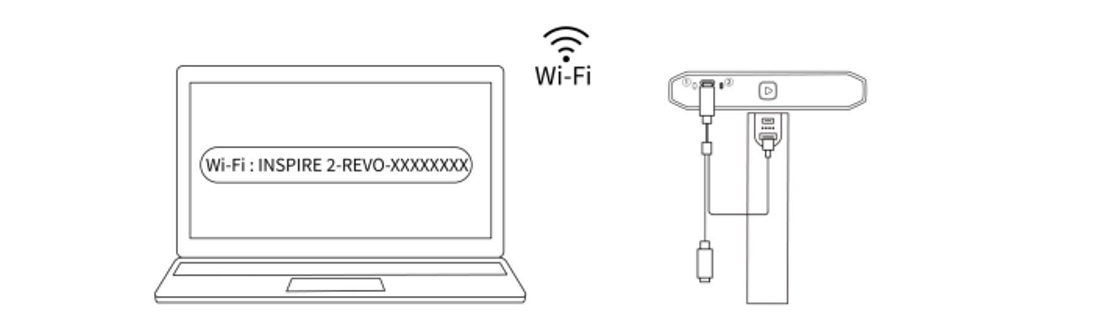

Then, search for a Wi-Fi network called INSPIRE2-REVO-XXXXXXXX in your PC's Wi-Fi settings, but it should not be in the list.
Solution: Check and modify the Wi-Fi channels of your Inspire 2

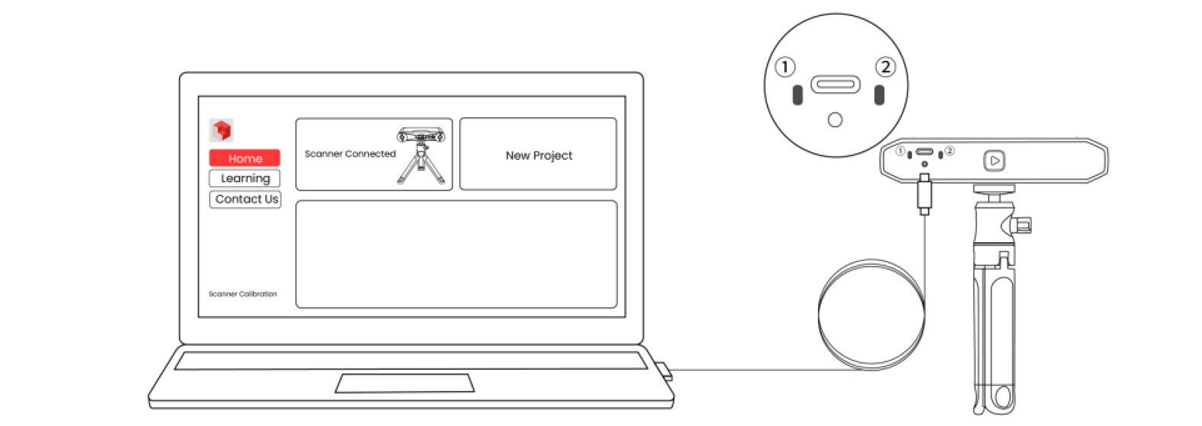

Step 1: Unplug the 2-in-1 cable from the scanner, plug in the long USB Type-C to C Data Cable, and connect the scanner to your PC with Revo Metro Software.
Step 2: Modify and set the region and SSID on Revo Metro Software.
Open the Revo Metro software.
Click Scanner settings - Wifi Settings.
Select your region and set the password.
Confirm and unplug the cables from the PC, connect to the power bank/power socket via wifi to check if it can be found on your PC.

Step 3: Change the channel of our Inspire 2 with our tool.
If you have already selected the region and set the password of the SSID, but the Wifi still cannot be found on your PC, please use our tool to change the Channel of Inspire 2.
Connect Inspire 2 via USB cable to your PC.
Click the link below and click icon on the right corner of the page to download and unzip the package here on your PC.
Tool Package:
https://drive.google.com/file/d/1HpQFTLpDBjKW7YQGMmn0JDNQfx_UI_2R/view?usp=sharing
Follow the steps in the file "readme-English" to check and modify the Channel.
Note that, if you know what the common channels your other electric devices use locally are, it's recommended to set the channel of Inspire to be the same as them.
Once finished, unplug the cables from the PC, connect to the power bank/power socket via wifi to check if it can be found on your PC.
How to connect your Inspire 2 via Wi-fi? Refer to the guidance in user manual:
https://revopedia.revopoint3d.com/en/INSPIREseries/INSPIRE2UserManual
