How do I scan a perfect 3D model with MetroX scanner?

Revopoint3D
Updated

Check out the latest software for MetroX!



4 Scan Modes(Cross Lines/Parallel Lines/Full Field/Auto Turntable) overview and tutorial:

Marker Scan:



Tutorial Videos



1. Multi-line Laser scan (including Cross lines & Parallel lines)

⚠️Note: Shiny/black/metal surfaces don't require scanning spray. Markers are needed, only "Marker Scan" is available.

Check how to use  markers at Marker using tips

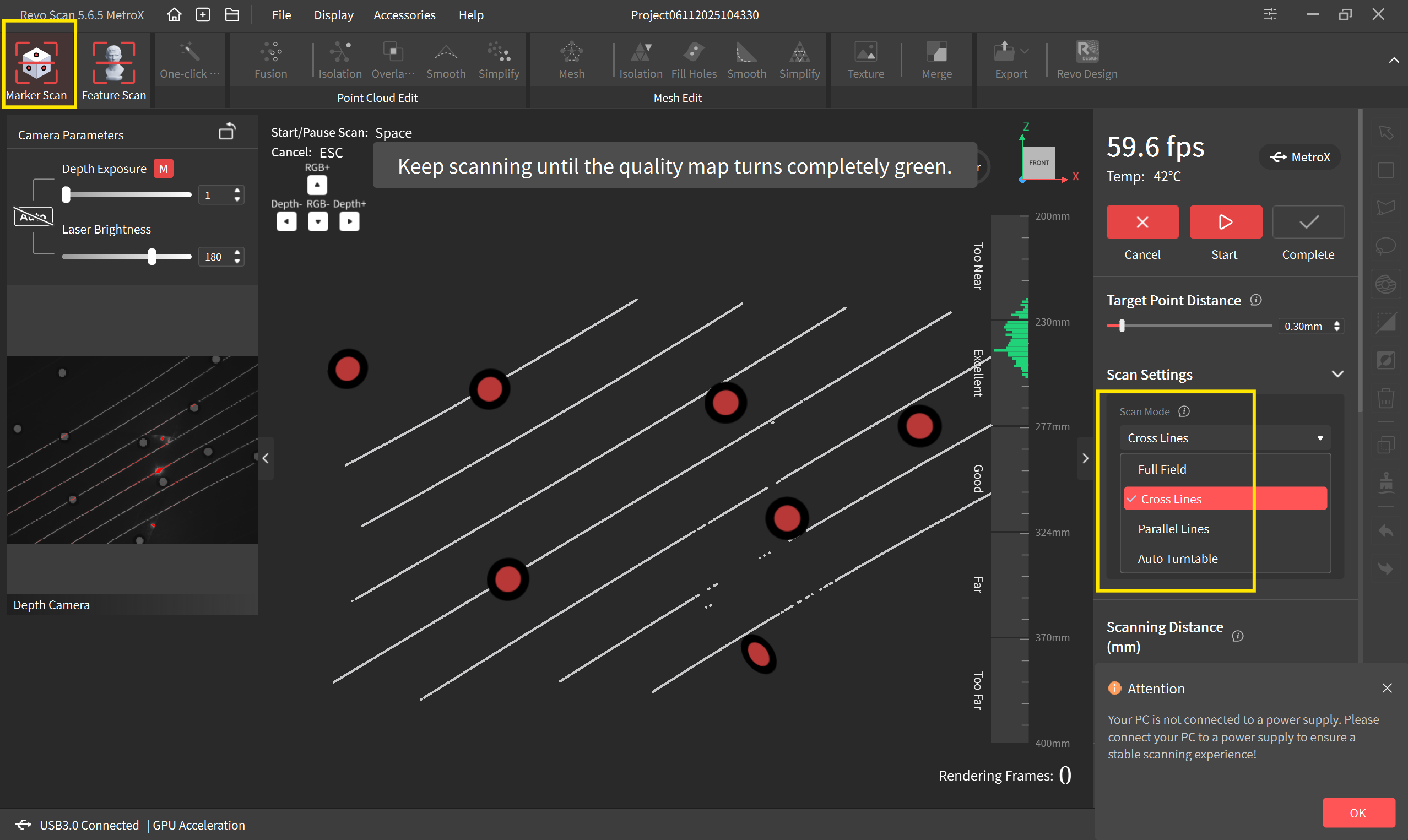

1) Cross Lines

Best for scanning shiny metal and black objects. It works faster than Parallel Lines Mode. The scanner projects 14 crossed blue laser lines to capture surface areas rapidly. Markers must be placed. Shiny metal or dark surfaces can also be scanned without applying scanning spray.

Black piece 1

Black fan

Black piece 2

Black mouse

Shiny black piece

Metallic shiny camshaft

Ceramic plate(2:10)



2) Parallel Lines

Ideal for capturing fine and detailed features, but it works at a slower speed than the Cross Lines Mode. The scanner projects 7 high-powered parallel blue laser lines to accurately scan intricate object details using marker tracking.

Metal piece



2. Full-field Structured light scan (including Full Field & Auto Turntable)

⚠️Note: Shiny/black/metal surfaces require scanning spray. Markers are not necessary unless you select "Marker Scan". Both "Feature Scan" and "Marker Scan" are available.

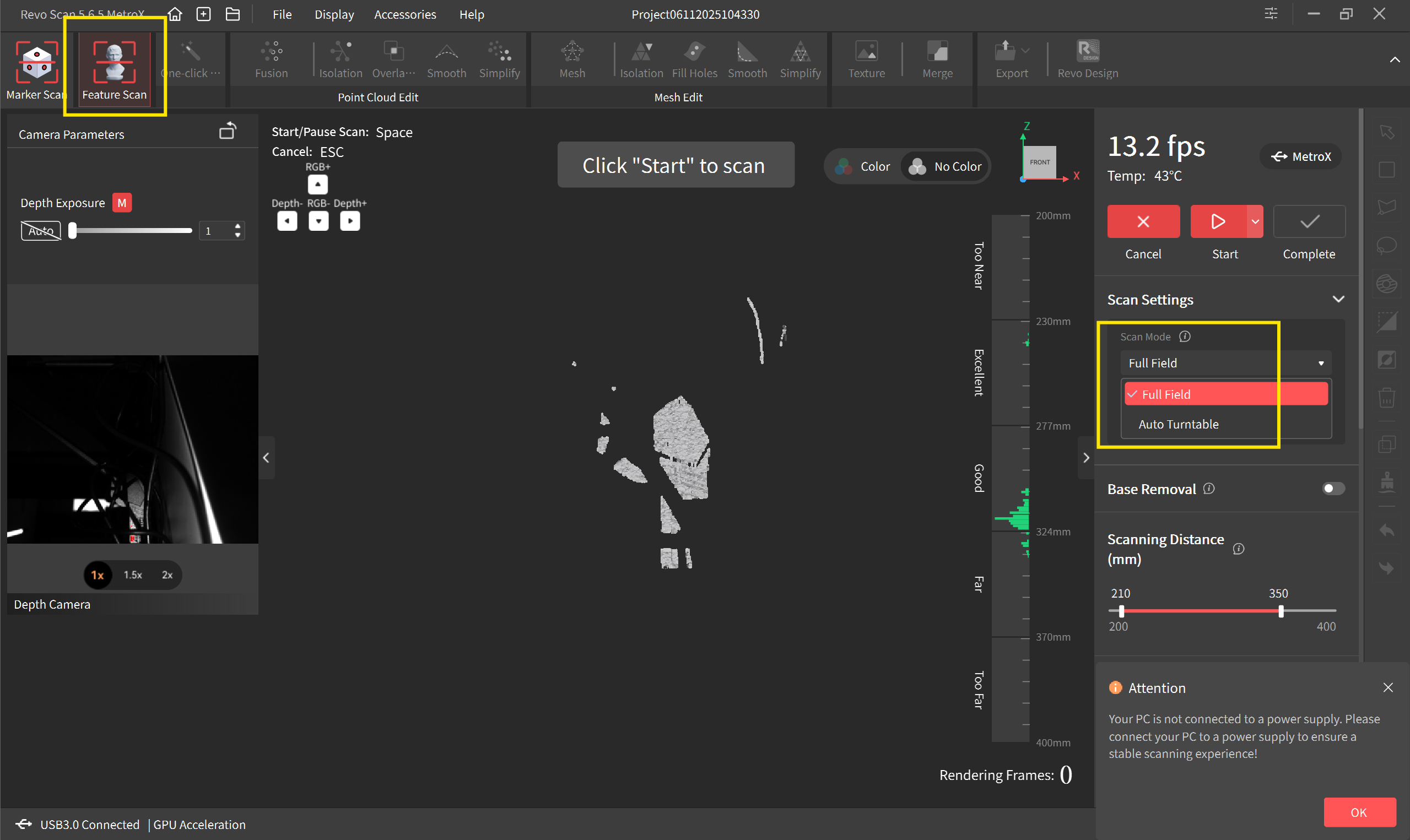

1) Full Field

The scanner uses micro-structured blue light to rapidly generate point cloud models of common objects. Geometrically intricate objects can be scanned without markers, while objects lacking distinct features require markers.



2) Auto Turntable

Set up the scanner on a tripod overlooking the turntable. Place an object on the Dual-axis Turntable. Use the one-click capture mode to generate the metrology-grade, detailed, color-accurate 3D model.

Coin(25:56)

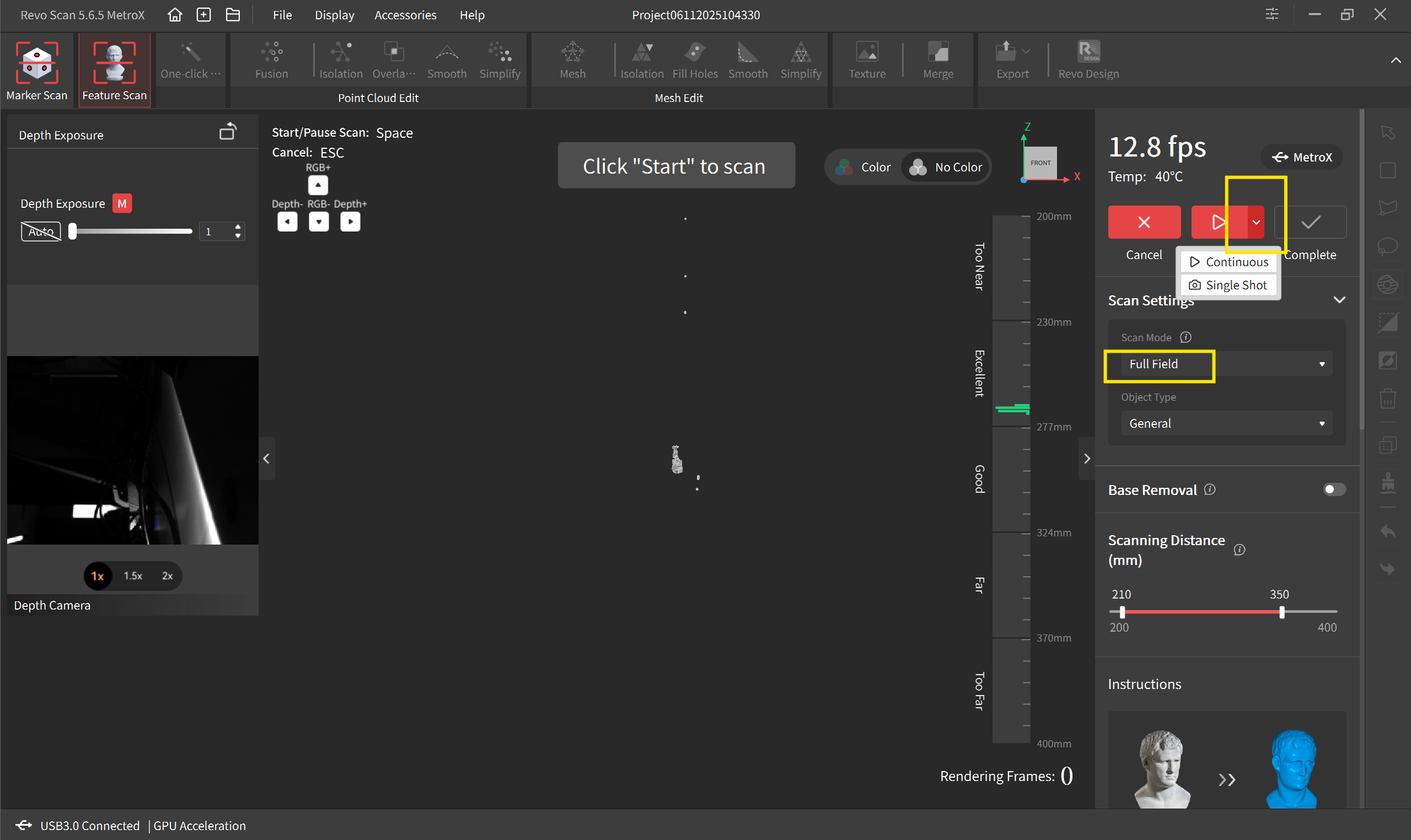

3. Single Shot

Available when you select Full Field Scan Mode.

Aim the scanner at the object and tap the [Start] button every time you want to capture a frame. Ensure there's at least 50% overlap between adjacent frames and stay still when capturing frames to avoid errors. Use this mode to capture more details and clearer textures.

Let's take RANGE2's scan as a reference.

RANGE 2 - Angel statue scan
