Dos and don'ts
-
Continuous Scan & Single Shot
- Feature Tracking
- Marker Tracking
Check out the latest Revo Scan!
Dos and don'ts
- How to Avoid Tracking Loss
- What's the Optimal size of an Obiect for MINI 2?
- How to Scan Feature Rich or Featureless Obiects
Continuous Scan
High / Standard Accuracy -> Feature Tracking -> General object: Designed to scan objects with unique shapes such as sculptures and easily identifiable features.
Tutorial Videos:
- MINI 2 - Gear scan
- MINI 2 - Dental part scan
- MINI - Sample bust scan
- MINI - White sculpture scan
- MINI - Barbie parts scan
- MINI - Miniature scan
- MINI - Fossil scan
- MINI - Fork scan
- MINI - Rock scan
- MINI - Sea shell scan
High / Standard Accuracy -> Feature Tracking -> Dark object: Designed to scan objects with darker surfaces but with unique shapes and easily-identifiable features, such as sculptures. However, not all dark objects can be successfully scanned. One example would be black leather shoes because leather absorbs light (or they are so shiny that they reflect too much light).
High / Standard Accuracy -> Marker Tracking -> General object: Designed to scan objects that have large, smooth areas or regularly-repeating features. Flat panels like a board or symmetrical objects like balls or bowls are usually suitable to scan with this mode. Place tracking markers irregularly on or around the objects. Remember to distribute the markers so they do not have repeating patterns because the scanner determines the relative location of each frame of point cloud data by identifying the unique patterns formed by the markers. Plan ahead to keep three or more markers (the red dots in the display) in view for each frame during the scanning process.
Tutorial Videos:
- MINI 2 - Gear scan - An innovative way to scan symmetrical objects
- MINI - Pumpkin scan - When placing markers on the object
- MINI - Cup scan - When placing markers on the turntable
- MINI - RC car part scan
- MINI - Shoe inner sole scan
- MINI - Phone scan
- MINI - 38mm Bolt Scan - An innovative way to scan symmetrical objects
- MINI - Mouse Battery Cover Scan - An innovative way to scan symmetrical objects

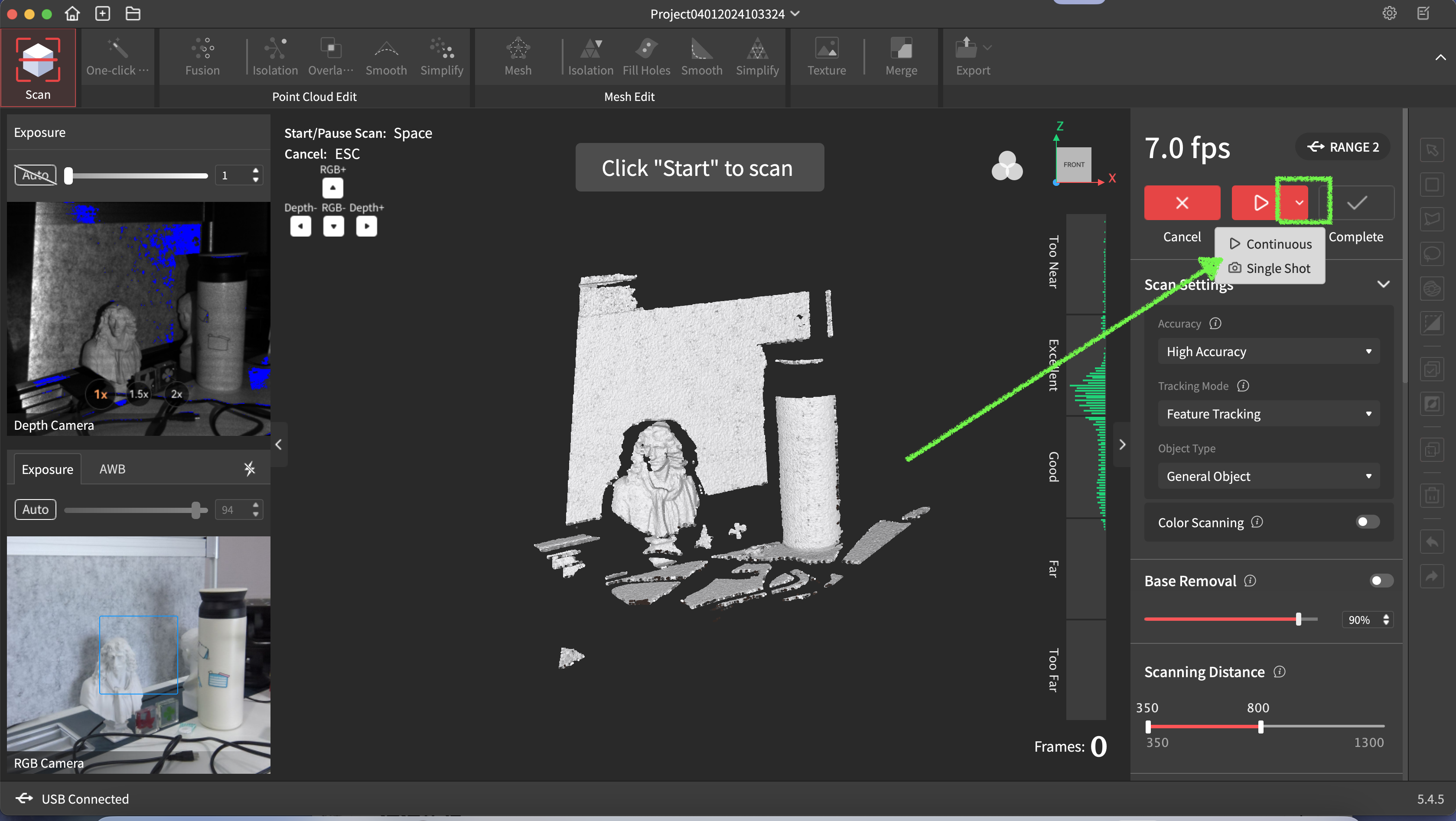

Single Shot - Take RANGE 2 as a reference
High / Standard Accuracy -> Feature Tracking -> General object:
Related articles:
Learn more interesting scanning skills.
